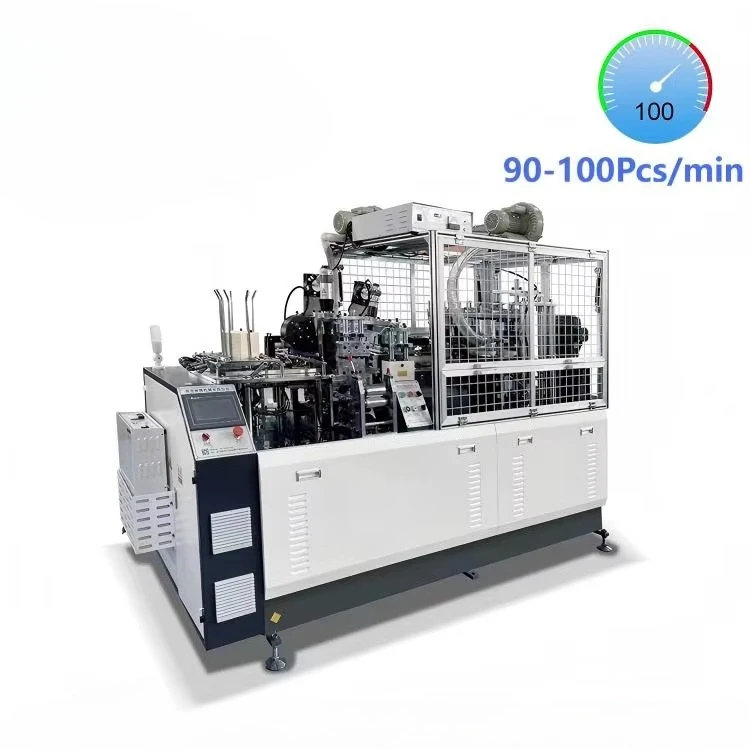

Full Servo High Speed Paper Cup Making Machine Low Price Tea Paper Cup Forming Machine for Small Business
Full Servo High Speed Paper Cup Making Machine Low Price Tea Paper Cup Forming Machine for Small Business
Regular price
KSh1,081,219
Regular price
KSh0
Sale price
KSh1,081,219
Couldn't load pickup availability
SPECIFICATIONS
Application: Industrial Paper Cutting Machine
Brand Name: NoEnName_Null
Cup boned way: Copper bar
External size: 2740*1280*2100mm
High-concerned chemical: None
Note: Customized service is available
Origin: Mainland China

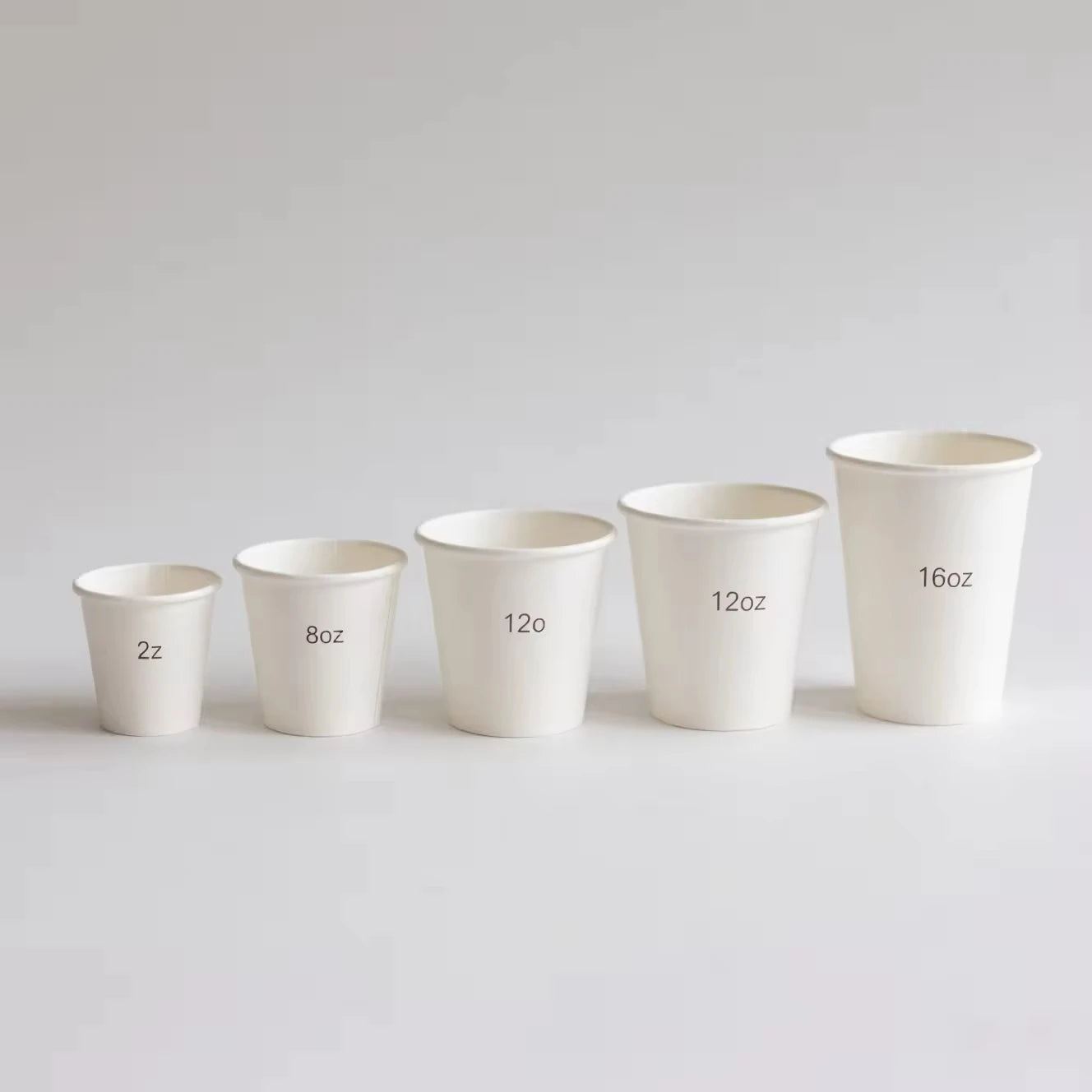

Paper Cup Specification: 2-16oz
Paper Specification: 150-350 GSM single/double PE coated paper
Power: 9KW
Product Type: Paper Cup Machine
Product name: YB-NBJ100 Paper cup making machine
Speed: 90-100pcs/min
Voltage: 380V 50HZ/220V 50HZ
Weight (KG): 2100
core components: PLC, Engine, Gear, motor, Pump, Gearbox
dimension(l*w*h): 2740*1280*2100mm
machinery test report: Provided
power(w): 5KW
processing type: Paper Folding Machine
production capacity: 90-100pcs/min
video outgoing-inspection: Provided
voltage: 380V 50HZ/220V 50HZ
warranty: 1 Year
1.The price only for reference, the specific cost based on your requirements and the destination port, so the link price is not the final price. please contact the customer service for more product details and quotations!
2.We ship the goods by sea !!
3.Door to door please leave message or whatsapp or email for price !!!
Contact: Milly
WhatsApp/Wechat/Mobile: +86 13837156352
Email: 2045975064a@gmail.com
2.We ship the goods by sea !!
3.Door to door please leave message or whatsapp or email for price !!!
Contact: Milly
WhatsApp/Wechat/Mobile: +86 13837156352
Email: 2045975064a@gmail.com
#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:750px;height:500px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:0;margin-left:0;width:750px;height:500px}#detail_decorate_root .magic-3{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-4{overflow:hidden;width:750px;height:60px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-5{margin-top:0;margin-left:0;width:750px;height:60px}#detail_decorate_root .magic-6{vertical-align:top}#detail_decorate_root .magic-7{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-8{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-9{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-10{text-align:center}#detail_decorate_root .magic-11{font-size:22px}#detail_decorate_root .magic-12{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-13{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-14{font-size:18px}#detail_decorate_root .magic-16{width:750px;border-collapse:collapse}#detail_decorate_root .magic-17{min-height:28px;padding:5px 10px;width:214px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-18{min-height:28px;padding:5px 10px;width:492px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-19{min-height:28px;padding:5px 10px;width:213px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-20{text-align:left}#detail_decorate_root .magic-21{display:none}#detail_decorate_root .magic-22{overflow:hidden;width:750px;height:63.55168269230769px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-23{margin-top:0;margin-left:0;width:750px;height:63.55168269230769px}#detail_decorate_root .magic-24{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-25{overflow:hidden;width:247.33333333333334px;height:247.33333333333337px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-26{margin-top:0;margin-left:0;width:247px;height:247px}#detail_decorate_root .magic-27{overflow:hidden;width:247.33333333333334px;height:247.33333333333337px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-28{overflow:hidden;width:184.5px;height:184.5px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-29{margin-top:0;margin-left:0;width:184px;height:184px}#detail_decorate_root .magic-30{overflow:hidden;width:184.5px;height:184.5px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-31{margin-top:0;margin-left:0;width:246px;height:184px}#detail_decorate_root .magic-32{overflow:hidden;width:750px;height:673px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-33{margin-top:0;margin-left:0;width:750px;height:673px}#detail_decorate_root .magic-34{overflow:hidden;width:750px;height:1207px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-35{margin-top:0;margin-left:0;width:750px;height:1207px}#detail_decorate_root .magic-36{overflow:hidden;width:750px;height:1345px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-37{margin-top:0;margin-left:0;width:750px;height:1345px}#detail_decorate_root .magic-38{overflow:hidden;width:750px;height:1262px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-39{margin-top:0;margin-left:0;width:750px;height:1262px}#detail_decorate_root .magic-40{overflow:hidden;width:750px;height:575px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-41{margin-top:0;margin-left:0;width:750px;height:575px}#detail_decorate_root .magic-42{overflow:hidden;width:750px;height:555px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-43{margin-top:0;margin-left:0;width:750px;height:555px}#detail_decorate_root .magic-44{overflow:hidden;width:750px;height:1871px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-45{margin-top:0;margin-left:0;width:750px;height:1871px}#detail_decorate_root .magic-46{overflow:hidden;width:750px;height:572px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-47{margin-top:0;margin-left:0;width:750px;height:572px}#detail_decorate_root .magic-48{overflow:hidden;width:750px;height:1162px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-49{margin-top:0;margin-left:0;width:750px;height:1162px}#detail_decorate_root .magic-50{overflow:hidden;width:750px;height:607px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-51{margin-top:0;margin-left:0;width:750px;height:607px}#detail_decorate_root .magic-52{overflow:hidden;width:750px;height:424px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-53{margin-top:0;margin-left:0;width:750px;height:424px}#detail_decorate_root .magic-54{overflow:hidden;width:750px;height:981px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-55{margin-top:0;margin-left:0;width:750px;height:981px}#detail_decorate_root .magic-56{overflow:hidden;width:750px;height:1324px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-57{margin-top:0;margin-left:0;width:750px;height:1324px}#detail_decorate_root .magic-58{font-size:20px}

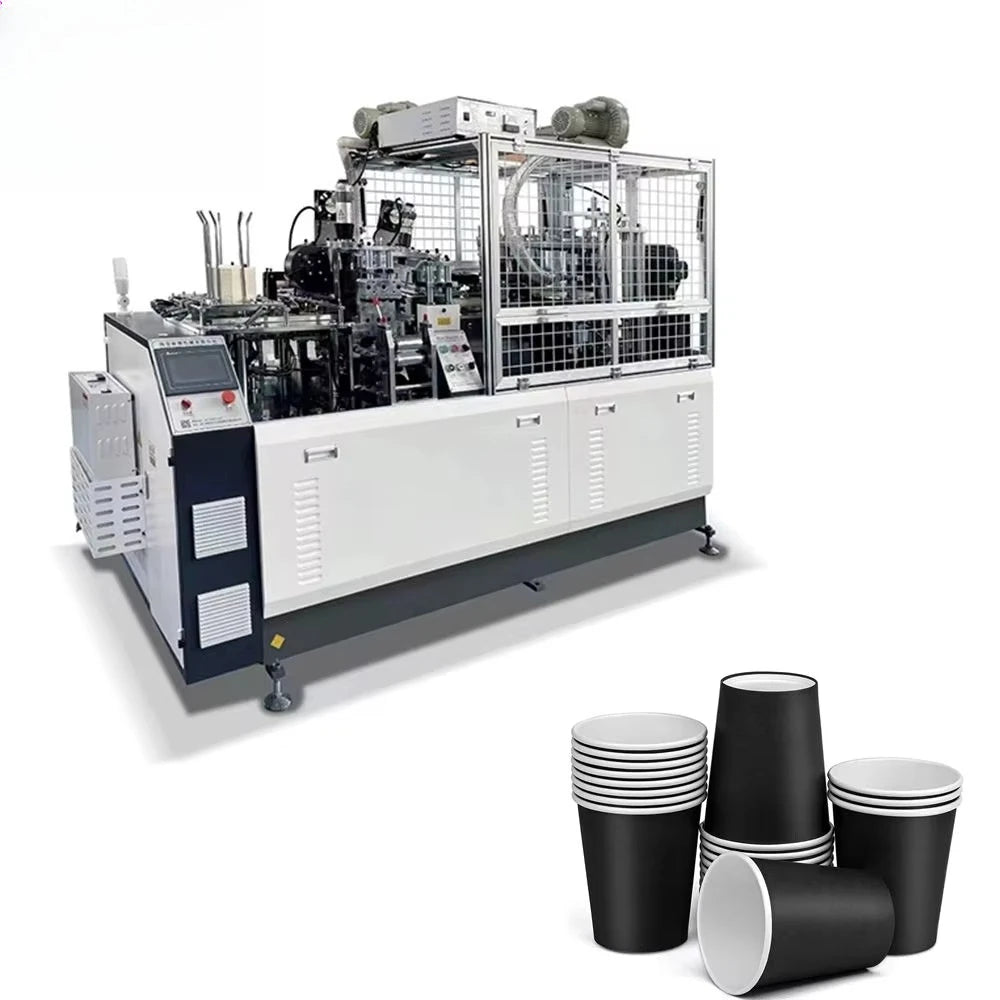

Product Display
MEDIUM SPEED PAPERCUP WITH HANDLE FORMING MACHINE
YB-NBJ medium speed handle forming machine is a new type of paper cup machine developed by our company. On the basis of the original paper cup forming machine, it adds the process of automatic cutting handle of roll paper conveying and ultrasonic bonding handle. this integrated automatic paper container forming machine combines all these processing procedures together: paper feeding, sealing, bottom cutting, lubricating, heating, knurling, curling and collecting. This machine has the functions of photoelectric detection, fault alarming, automatic lubrication of the bottom transmission system, automatic counting and collecting cups and so on. It will save you a lot on time and labour cost. Yongbo produces classic catering paper cups. It passes paper coated with PE film on one side or double-sided PE film through a series of process steps to make various models, specifications and Capacity paper cup. Paper Cup With Handle can carry hot drinks, cold drinks and other beverages, and are used in coffee shops, tea shops and other scenes. The Paper Cup With Handle machine can provide high-quality, high-efficiency production and meet consumers' needs for convenience and environmental protection. *The finished product of the Paper Cup With Handle Machine can be customized.
Technical Parameters
Model |
NBJ100 HS Code:8441309000 |
Paper Cup Specification
|
2-16oz |
(60-450ml)(mold exchangeable) |
|
Top: 45-100mm |
|
Height: 30-115mm |
|
Bottom: 30-72mm |
|
Paper Specification |
150-350 GSM single/double PE coated paper |
Production Capacity |
90-100pcs/min（for handle max is 80pcs/min) |
Voltage |
220V/380V 50HZ 3Phases |
Average Power |
5KW |
Air Supply Requirement |
Air pressure:0.4-0.5Mpa Air out-put:0.4cbm/min （ Air Compressor required ） |
Total Weight |
2100KG |
Dimensions |
2740x1280x2100mm |

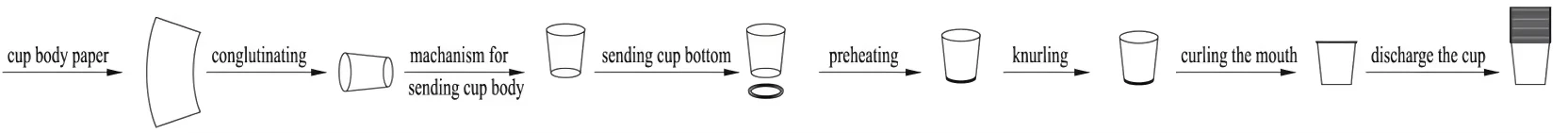

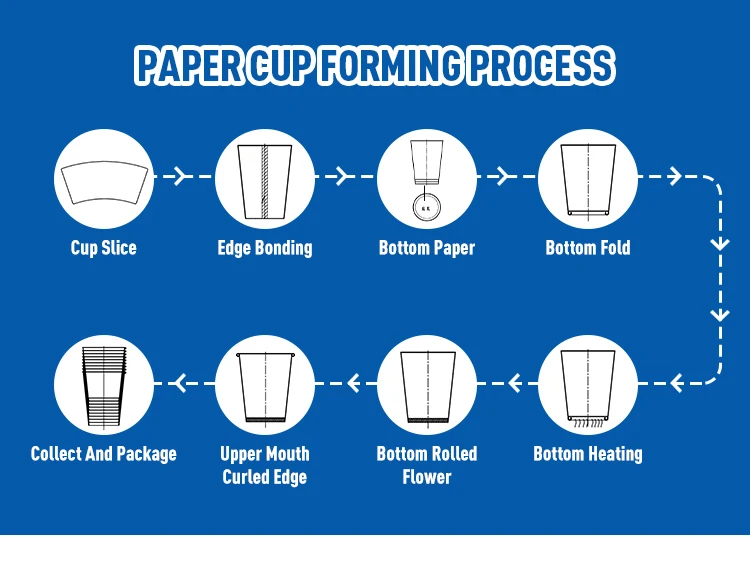

Paper Cup Forming Process

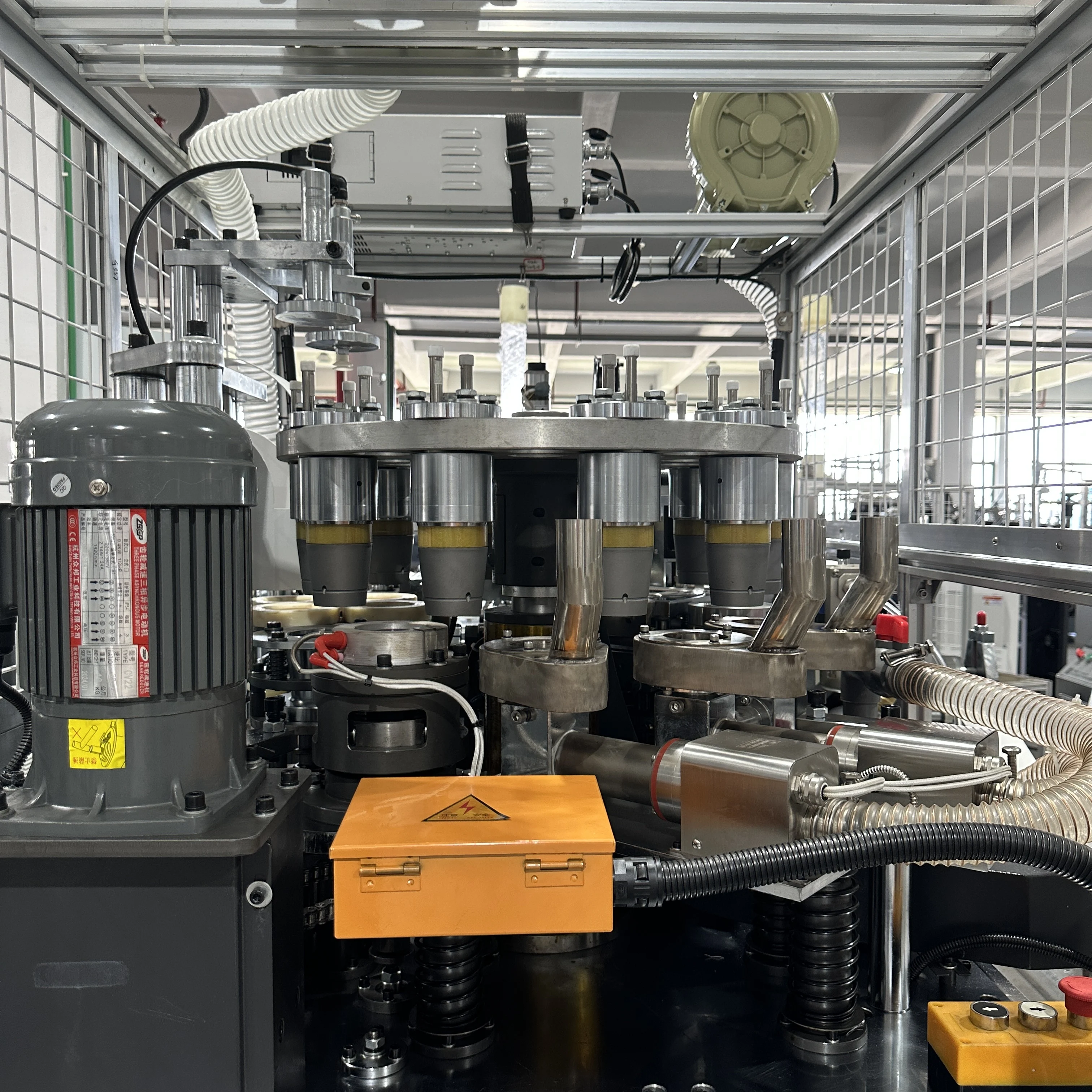

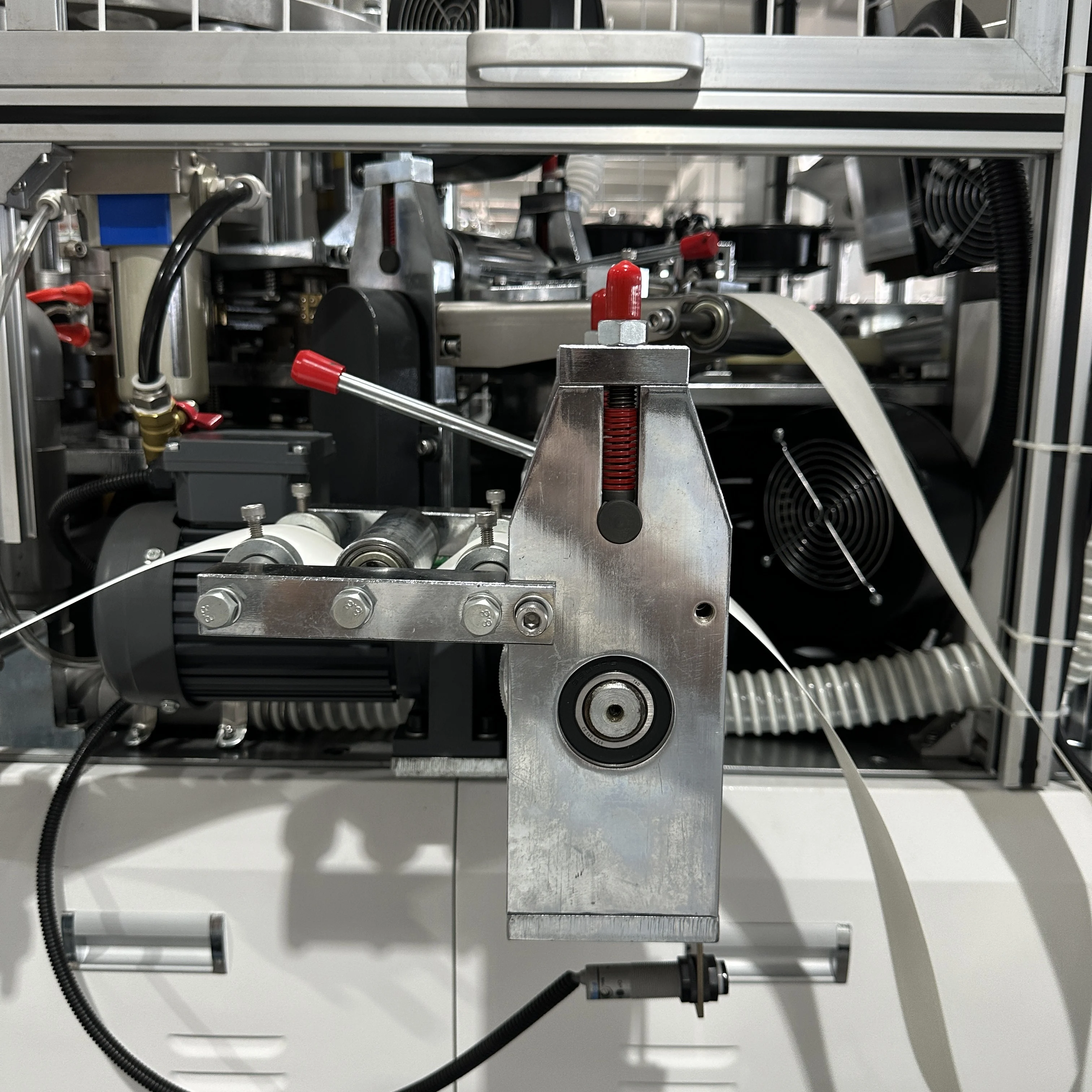

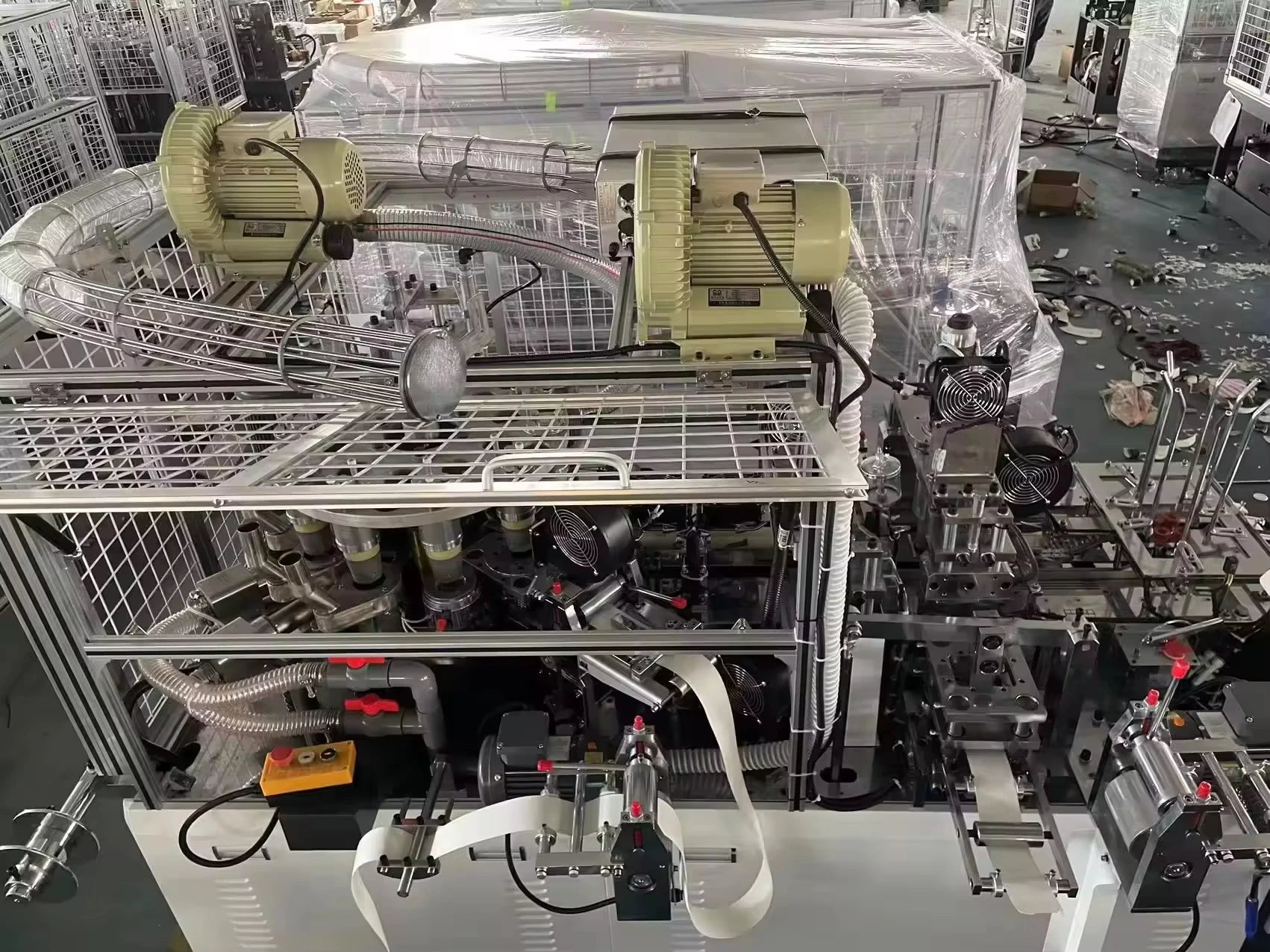

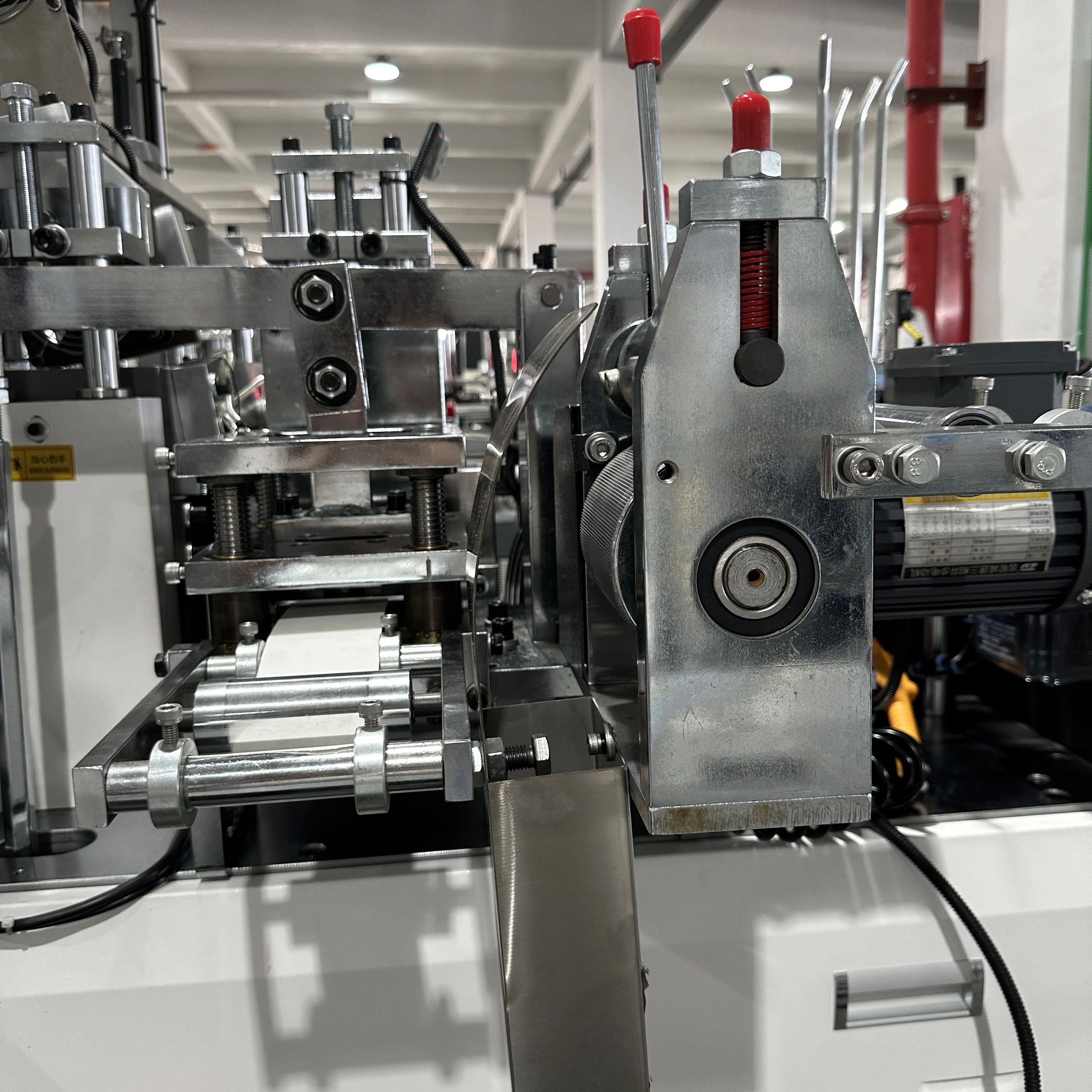

Main Parts

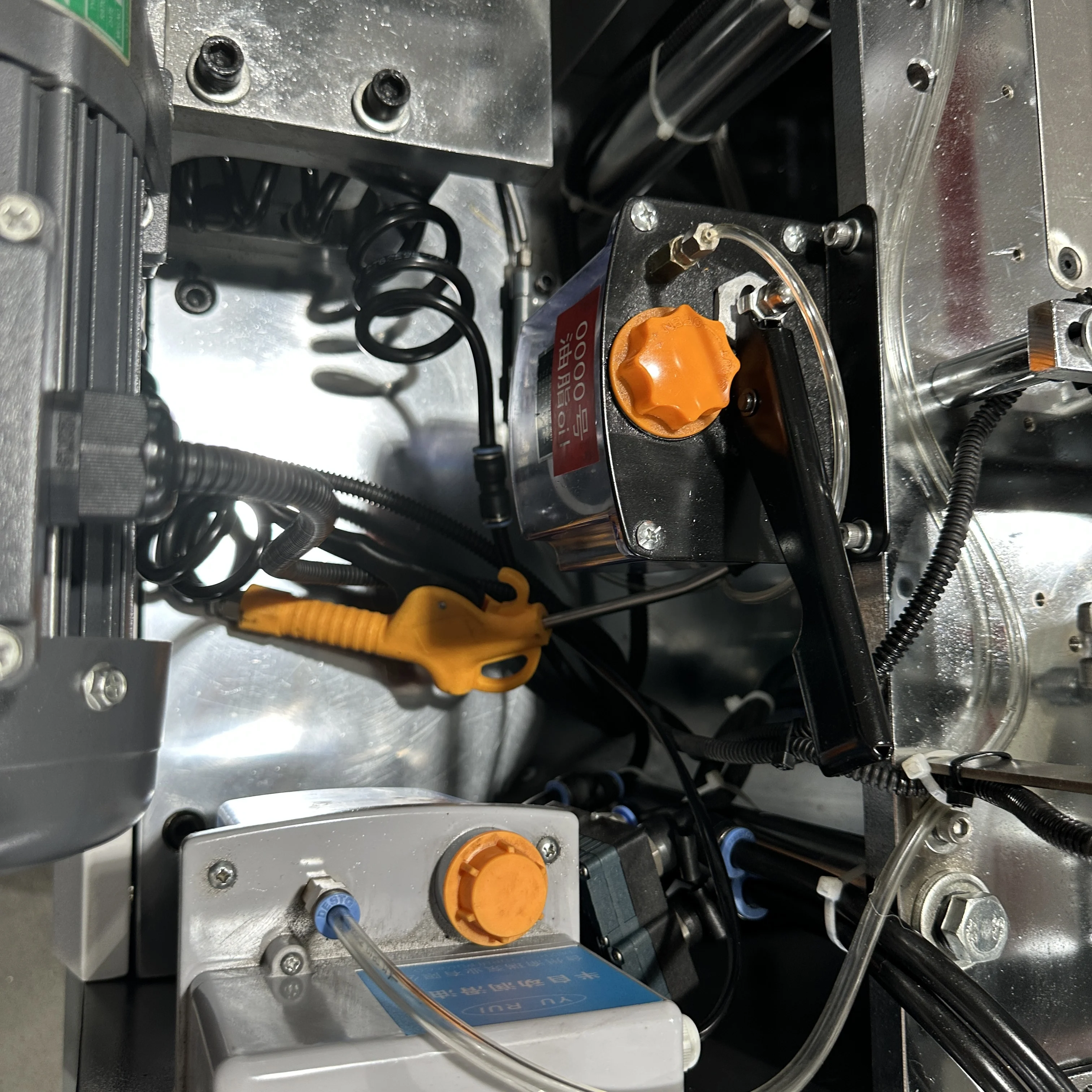

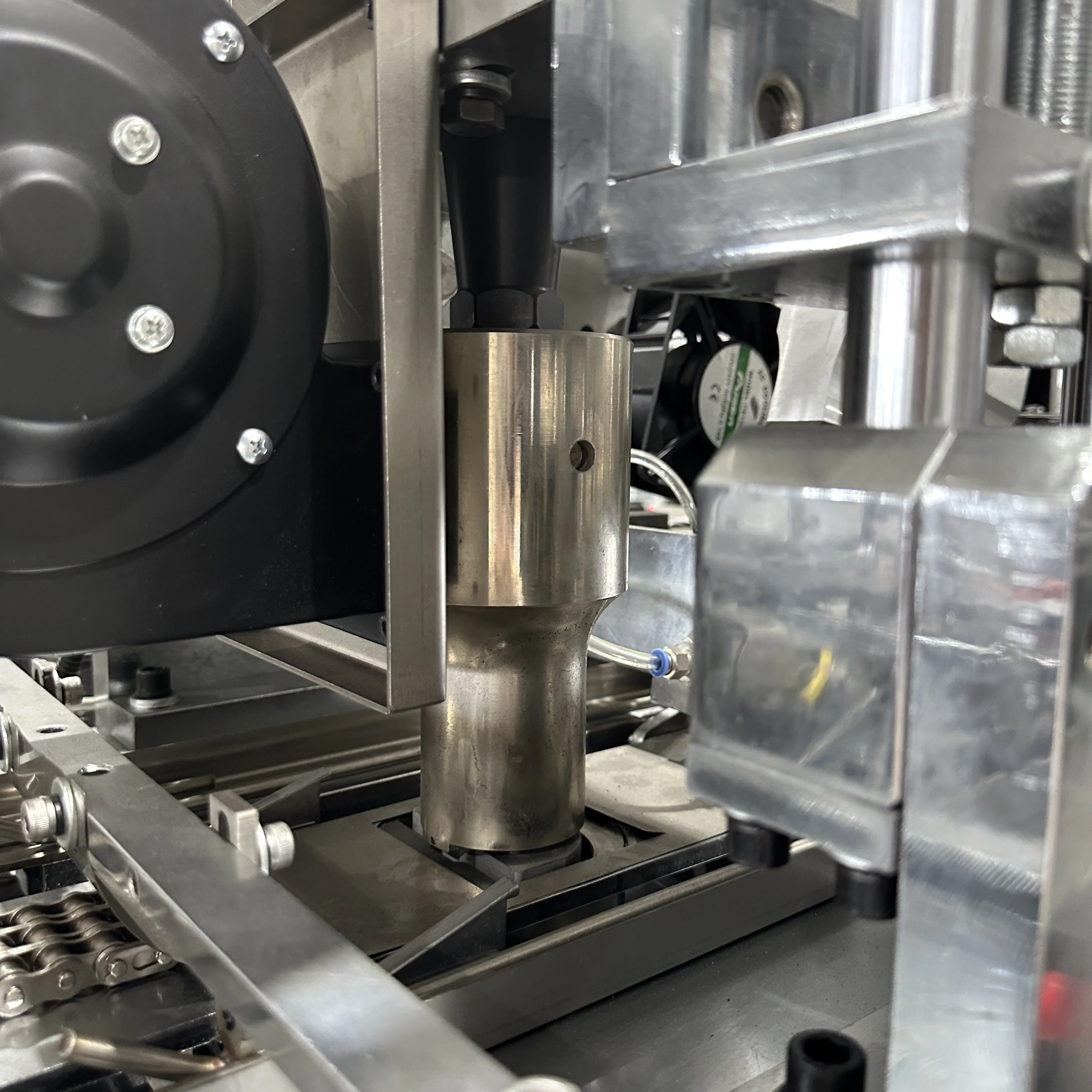

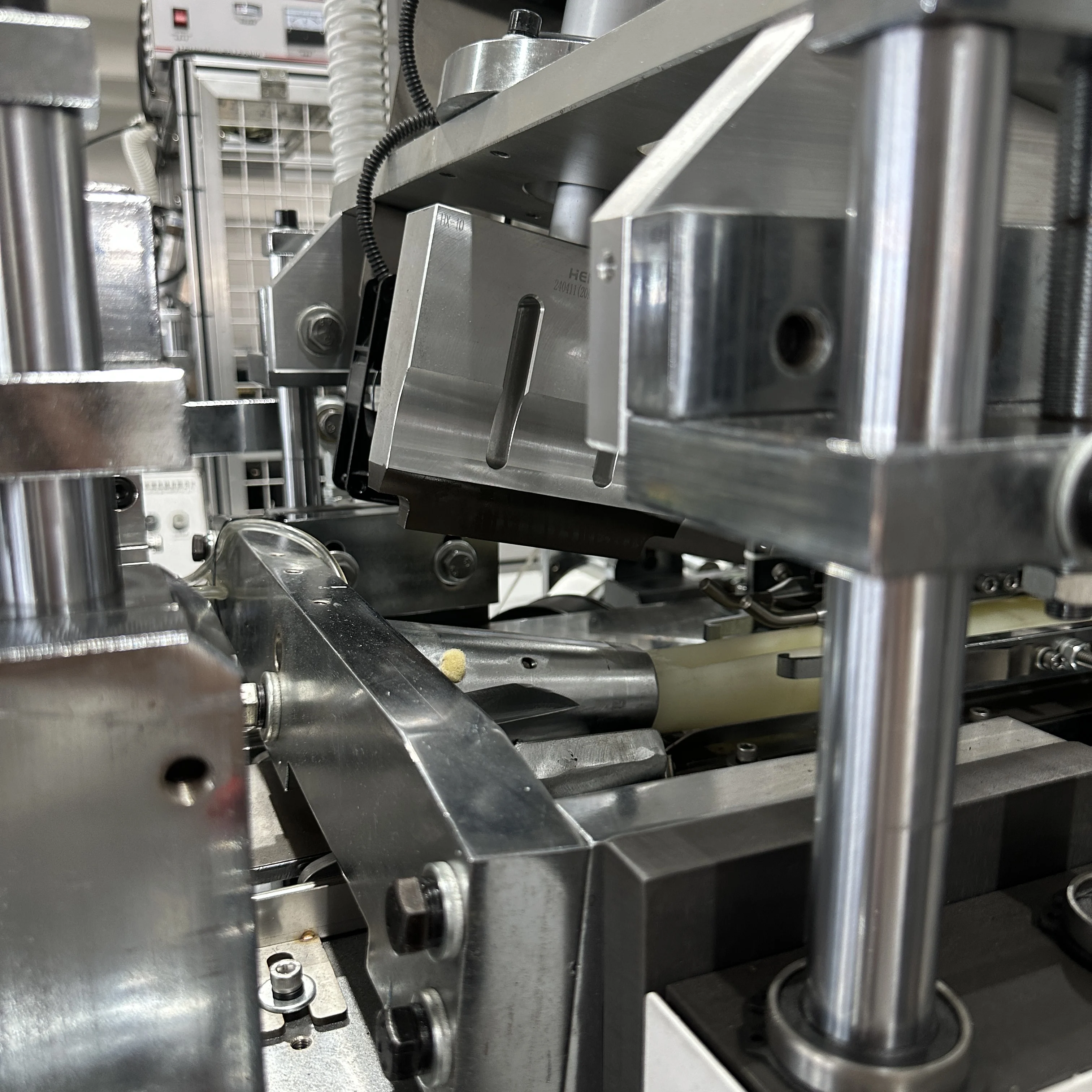

-Ultrasonic ：The wall sealing take ultrasonic sealing more fast and stable with good product. -Sensors：Sensor detection throughout the program (sensors control all steps), reducing waste and failure , more reliable and stable. -Oil circuit system：Prolong the service life of parts, reduce friction losses, and improve machine efficiency. -Heat dissipation function：Maintain the normal operating temperature of the equipment, extend the production service life, and improve the safety of use. -Hot air system：The heating speed is fast, the constant temperature is more stable , and the scrap rate is greatly reduced to ensure the normal operation of the equipment.
Outstanding Advantages
Low initial investment: Compared with high-speed multi-disc (multi-station) molding machines, single-disc machines have a simple structure and lower procurement costs, making them suitable for companies with limited budgets or start-up factories. Trial-production friendly: Suitable for new product prototyping or small-scale trial production, avoiding waste caused by mold coordination problems in multi-disc machines. Low failure rate: The mechanical structure is simple, the operation stability is high, and the downtime caused by multi-station synchronization problems is reduced. Reduce raw material waste: The moderate speed facilitates real-time quality inspection and reduces the defective rate that may be caused by high-speed production (such as uneven curling and weak gluing). Compact design: The single-disk machine is usually smaller than the multi-station model, which is suitable for scenes with limited factory space (such as small workshops and rental factories). Uniform heating: The heating system of the single-disc mold (such as bottom hot pressing) is easier to control the temperature, avoiding cup deformation or poor gluing caused by uneven heat distribution in multi-disc machines. Balanced pressure: The pressure adjustment of the cup body molding and bottom sealing is more precise, and the finished product has high consistency.
Maintenance & Warranty Guide Maintenance of NBJ Medium Speed Paper Cup Forming Machine should be carried out in strict compliance with the maintenance guidance. 1. Every component should be cleaned up carefully. 2. For sanitation and cleanliness, a fixed schedule should be maintained to clean and wipe the machine. Greasy dirt should be removed from the paper, die and roller. The machine must be kept from paper scraps, dust, plastic rolling, etc. 3. Glycerol can be used to lubricate the entire machine. Warranty 1. We offer a one-year warranty for the NBJ Medium Speed Paper Cup Forming Machine from the shipment date. 2. The warranty does not cover normally worn components. 3. We will not be responsible for any damage caused by misusing, improper handling, negligent maintenance, intentional injury or other damages.
Company Profile

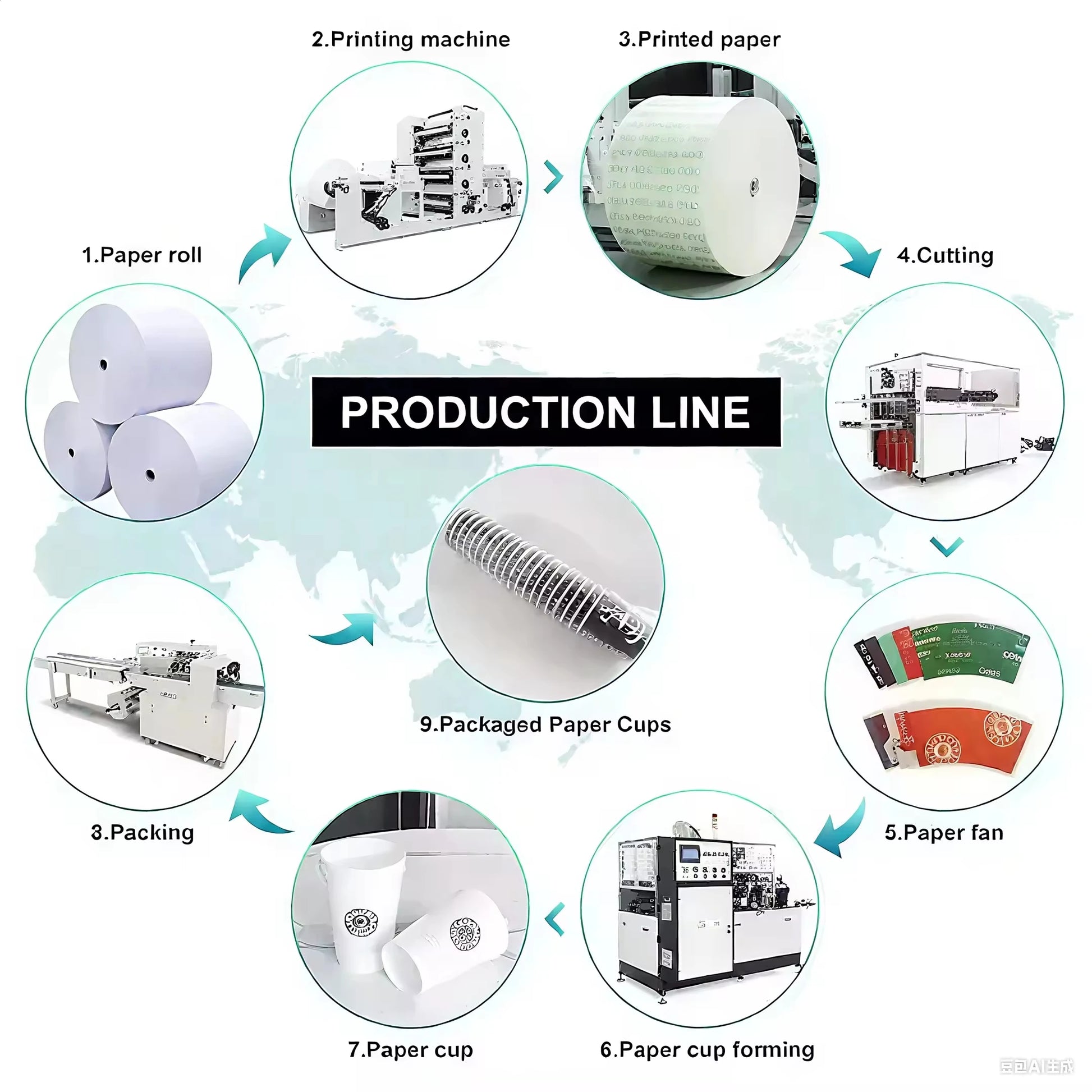

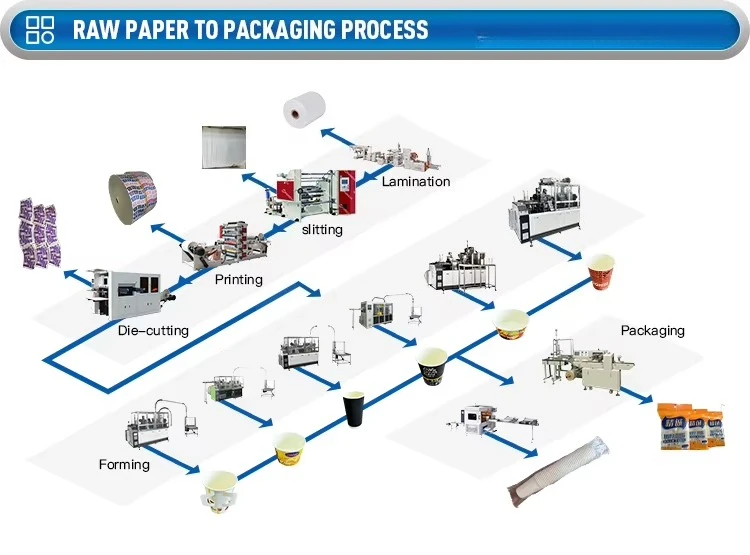

Production Process

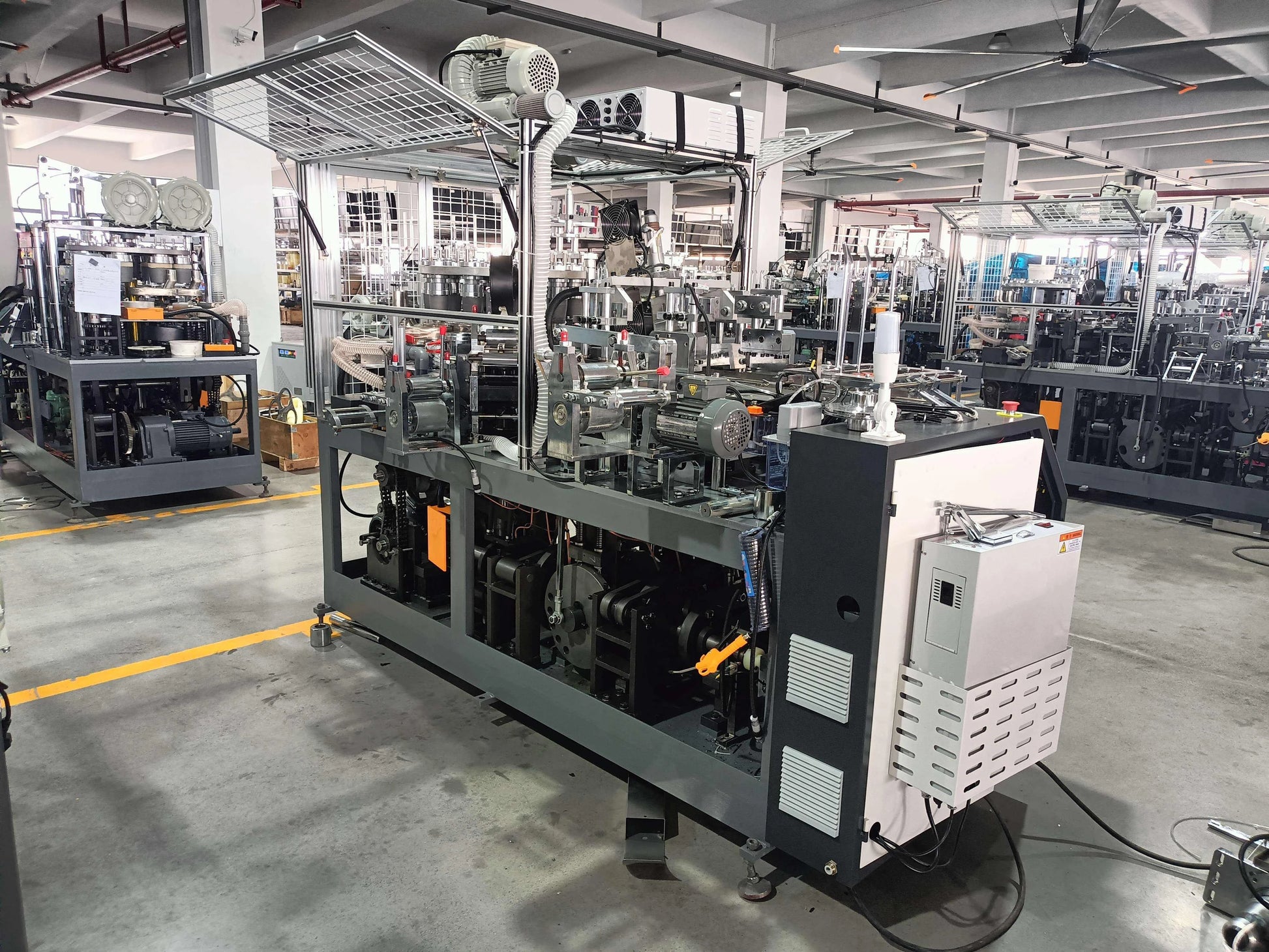

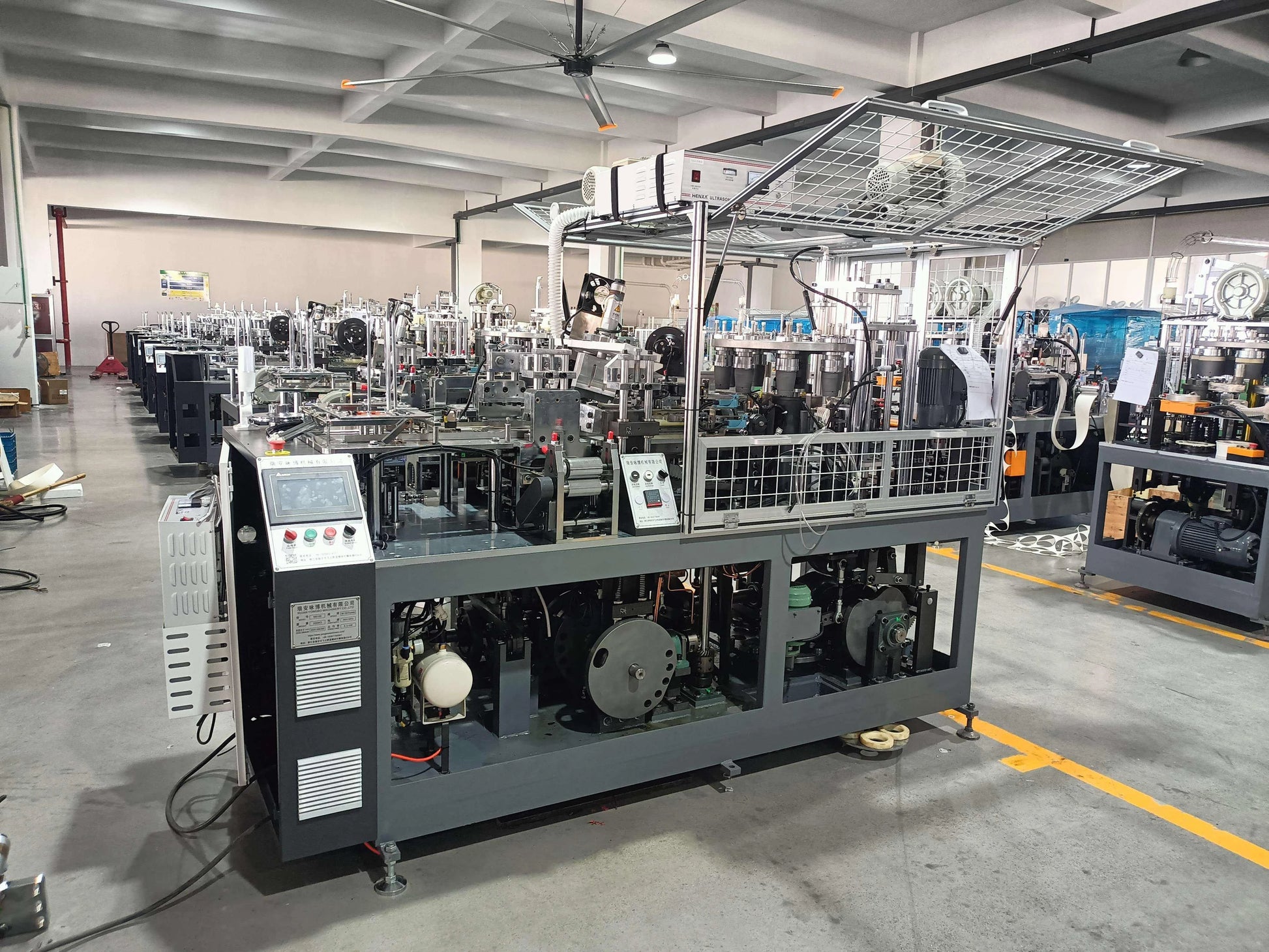

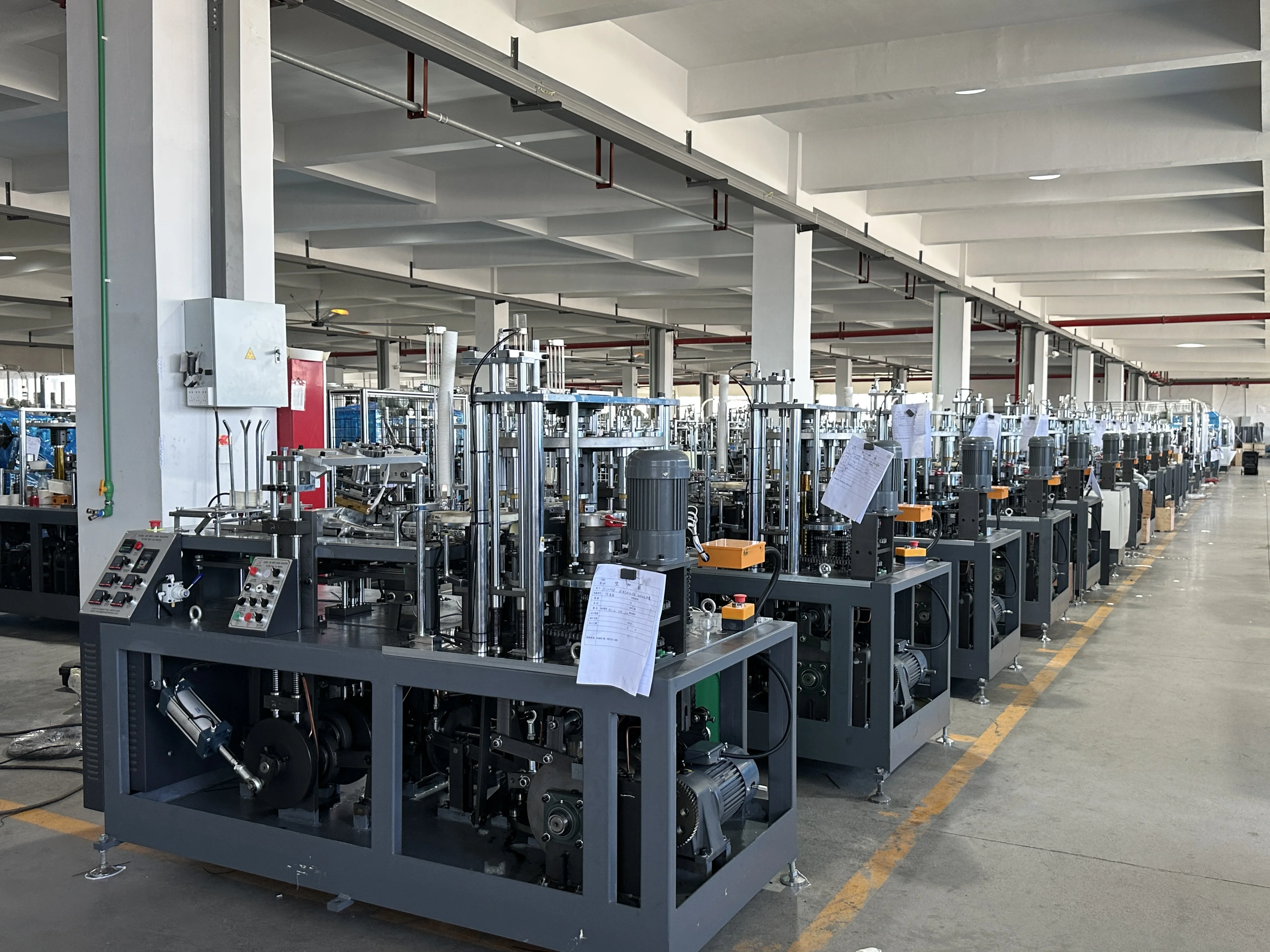

Our Factory
Certifications
Exhibition
FAQ
Q1: Are you a factory or trading company ?
A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.
Q2: How does your factory do regarding quality control ?
A2: All the products will be 100% checked before the shipment.48 hours running without stop to confirm no problem.
Q3: What is your payment term ?
A3:Payment: by bank T/T payment. 30% down payment, and balance for 70% payment before shipment.
Delivery time: within 45 working days after receiving the deposit.
Q4: How about warranty? And after sales ?
A4: From the day of the use of the machine in the buyer's factory: 1year. The seller guarantees the mc are 100% new. The above clause is only effective being properly used, any artificial misuse or destroy prepensely is not within the limit of quality.
Q5: What do you have to tell us before buying ?
A5: If the buyer need seller's engineer to go to his factory to help install and test the mc, please be kindly bear their visa,go and return ticket, lodging and eating, salary us$100/ per day. But this can be negotiated by both side.
A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.
Q2: How does your factory do regarding quality control ?
A2: All the products will be 100% checked before the shipment.48 hours running without stop to confirm no problem.
Q3: What is your payment term ?
A3:Payment: by bank T/T payment. 30% down payment, and balance for 70% payment before shipment.
Delivery time: within 45 working days after receiving the deposit.
Q4: How about warranty? And after sales ?
A4: From the day of the use of the machine in the buyer's factory: 1year. The seller guarantees the mc are 100% new. The above clause is only effective being properly used, any artificial misuse or destroy prepensely is not within the limit of quality.
Q5: What do you have to tell us before buying ?
A5: If the buyer need seller's engineer to go to his factory to help install and test the mc, please be kindly bear their visa,go and return ticket, lodging and eating, salary us$100/ per day. But this can be negotiated by both side.
Q6:How many days to delivery ?
A6:45-60days.
Q7:How many staffs in your company ?
A7:more than 80 persons.
Q8:Can your machine only produce one size of cups ?
A8:Machine can produce a lot of size just by changing mold
