SPECIFICATIONS

Brand Name: NoEnName_Null

Certification: None,None

Current: Home Assistant

Each Output Current: ≤7A

Every Way Loads (P-10): LED≤100W

Features: Homekit

High-concerned chemical: None

Input (Kedsum): AC220V 50/60Hz

Input (POSCO ZHT): AC200V-240V 50Hz

Is Smart Device: No

Item Type: SWITCHES

Material: Plastic

Model Number: Smart Life Products

Origin: Mainland China

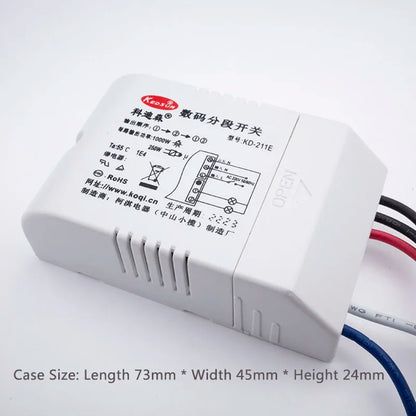

Size (Kedsum): 76 X 42 X 22 MM (KD-399),73 X 45 X 24 MM (KD-211B KD-211E)

Size (POSCO P-10): 84*38*22mm

Size (POSCO P-6): 67.5MM*39.5MM*15MM

Size (POSCO P-8): 67.5MM*39.5MM*14.5MM

Warranty: Matter Smart Home

Working Environment: ≤50℃ (Kedsum & ZHT & POSCO P-8 P-6),≤80℃ (POSCO P-10)

It is a sectional switch, does not contain a remote control module, is to use the wall switch to ON and OFF to achieve different lighting effects.

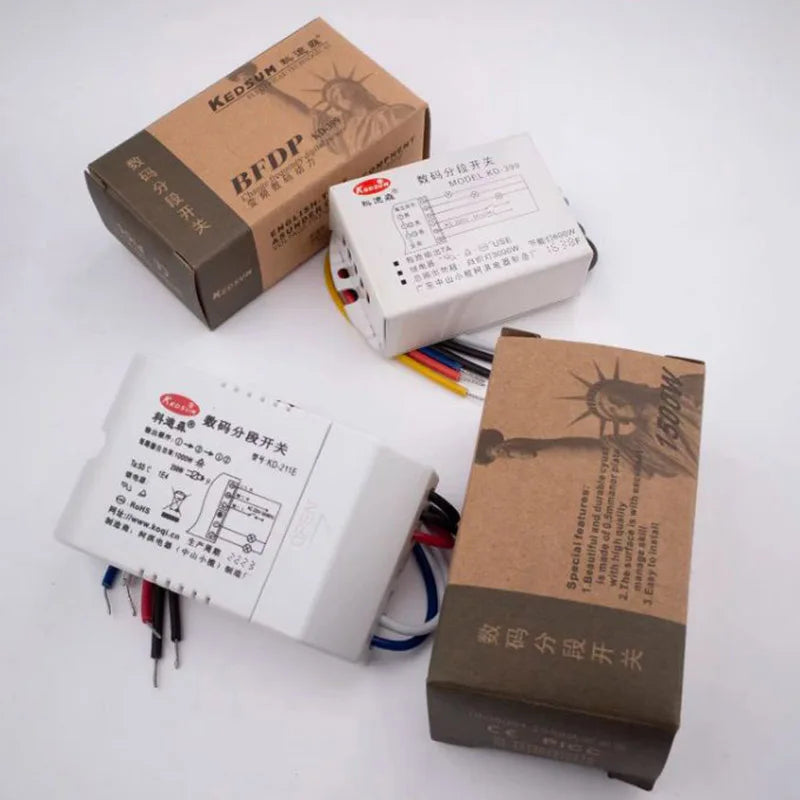

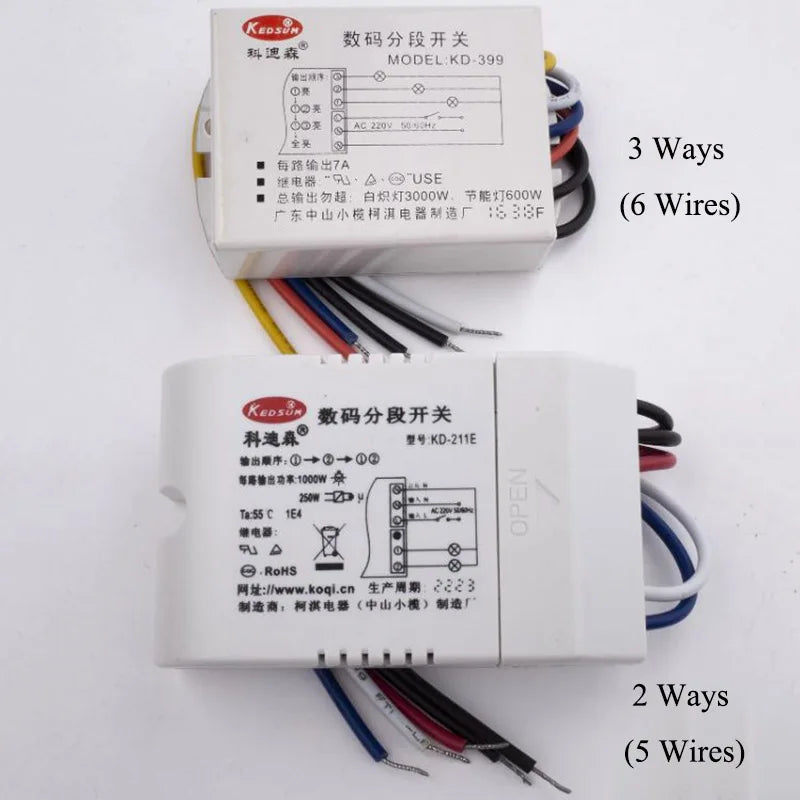

Description of Kedsum subsection switch:

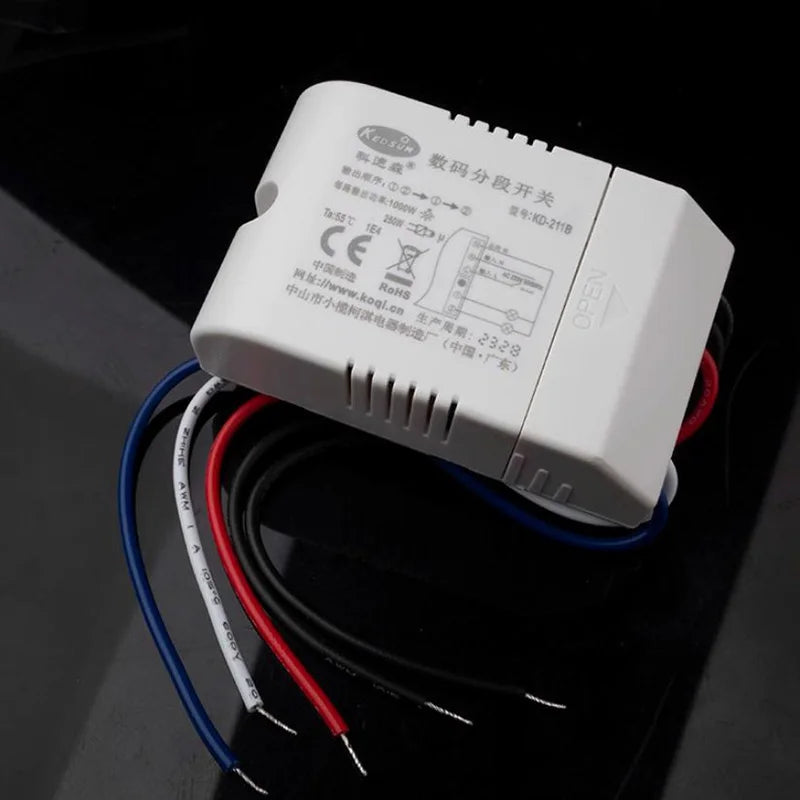

1. The lighting sequence of KD-211B is: full bright --- blue wire is bright --- white wire is bright.

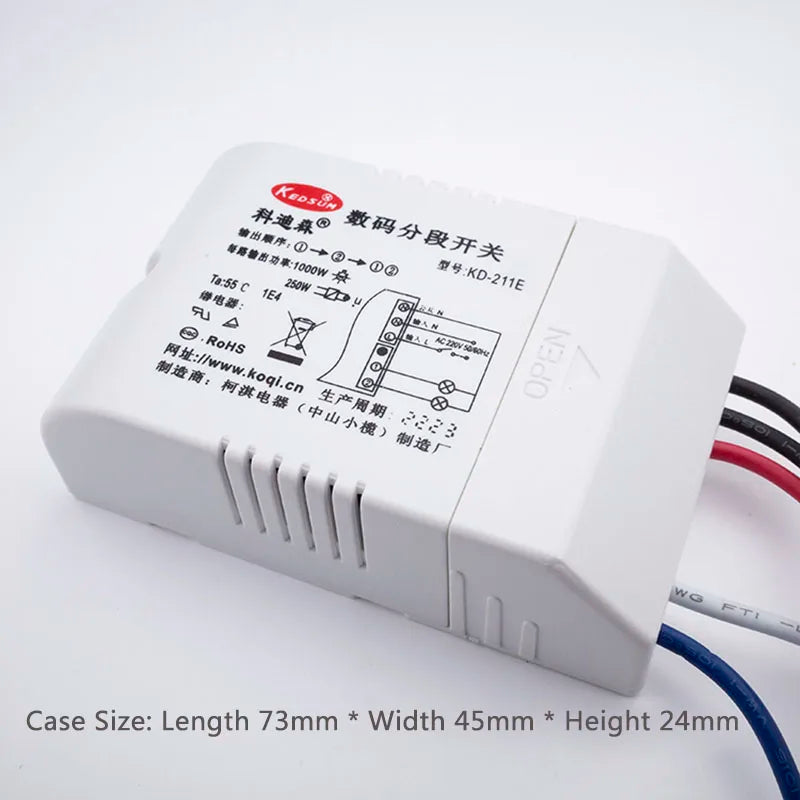

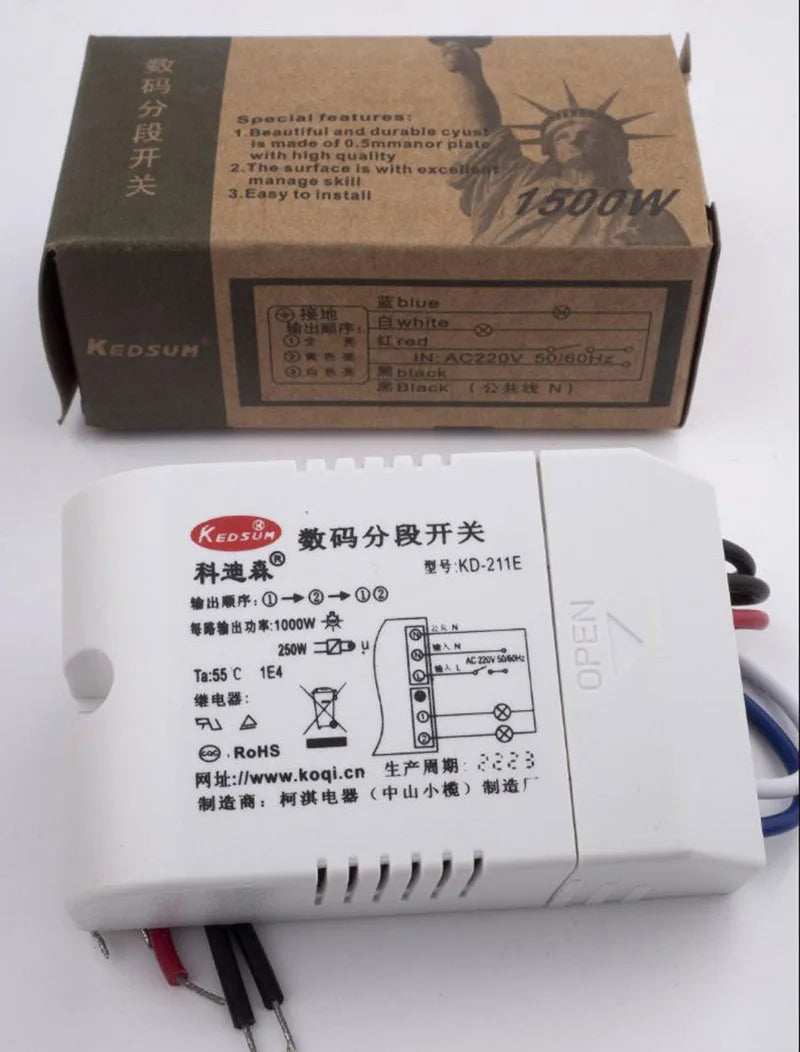

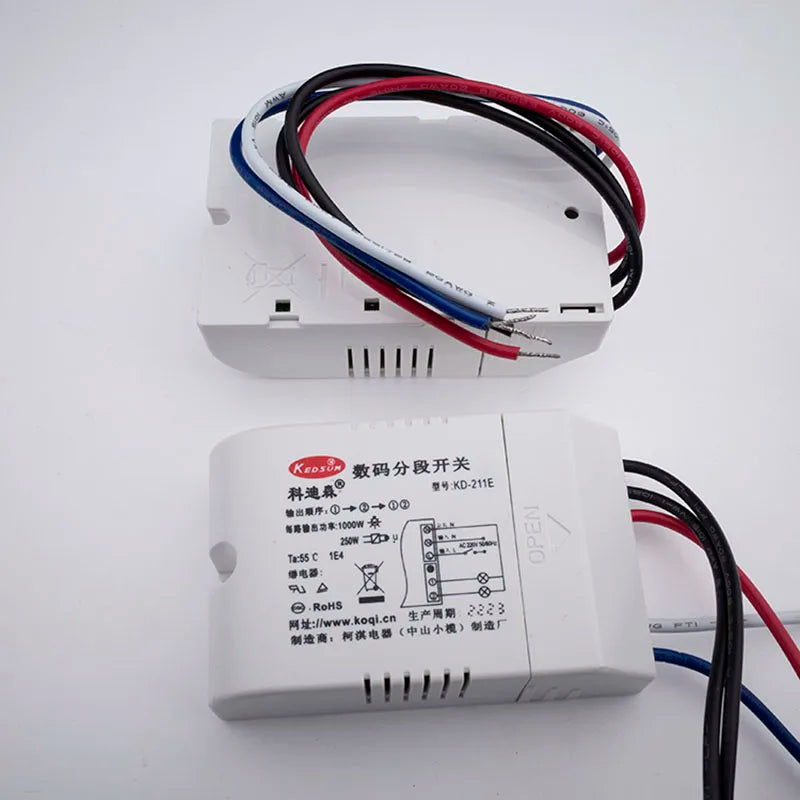

2. The ighting sequence of KD-211E is: blue wire is bright --- white wire is bright --- full bright.

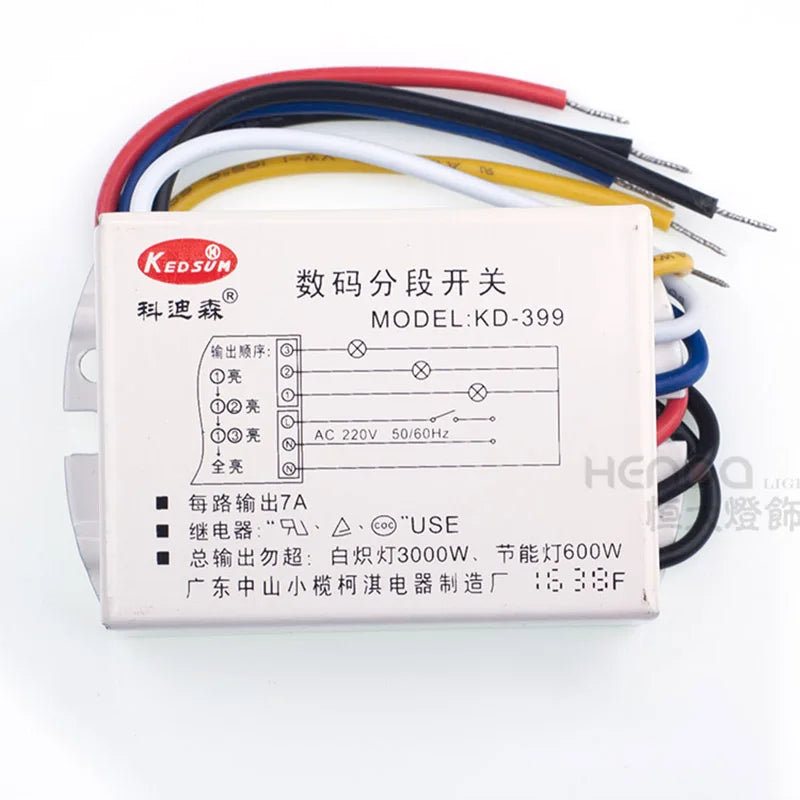

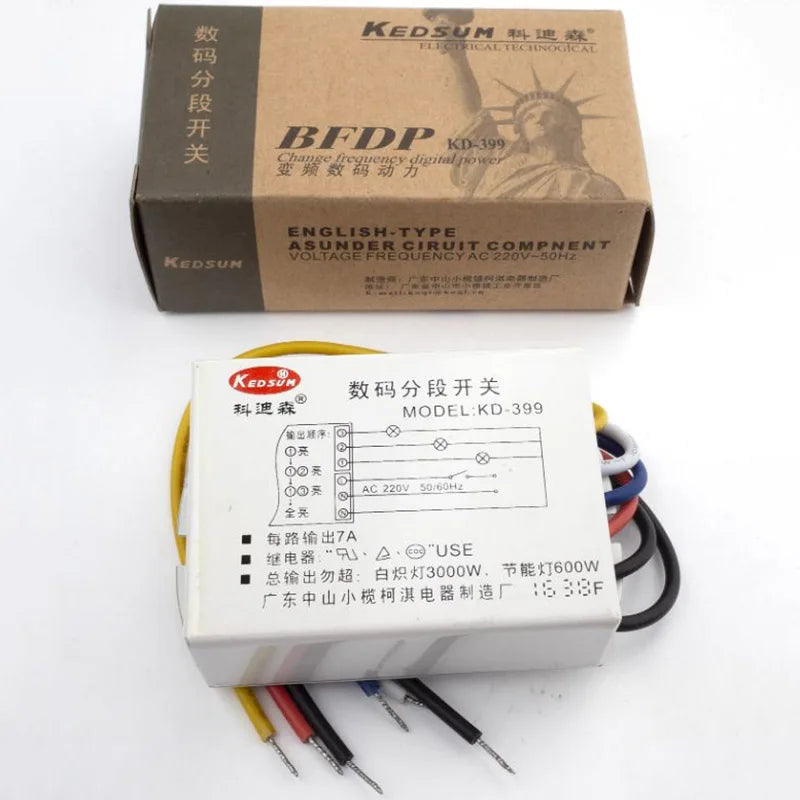

3. The lighting sequence of KD-399 is: Blue wire is bright --- blue and white wire is bright --- blue and yellow wire is bright --- full bright.

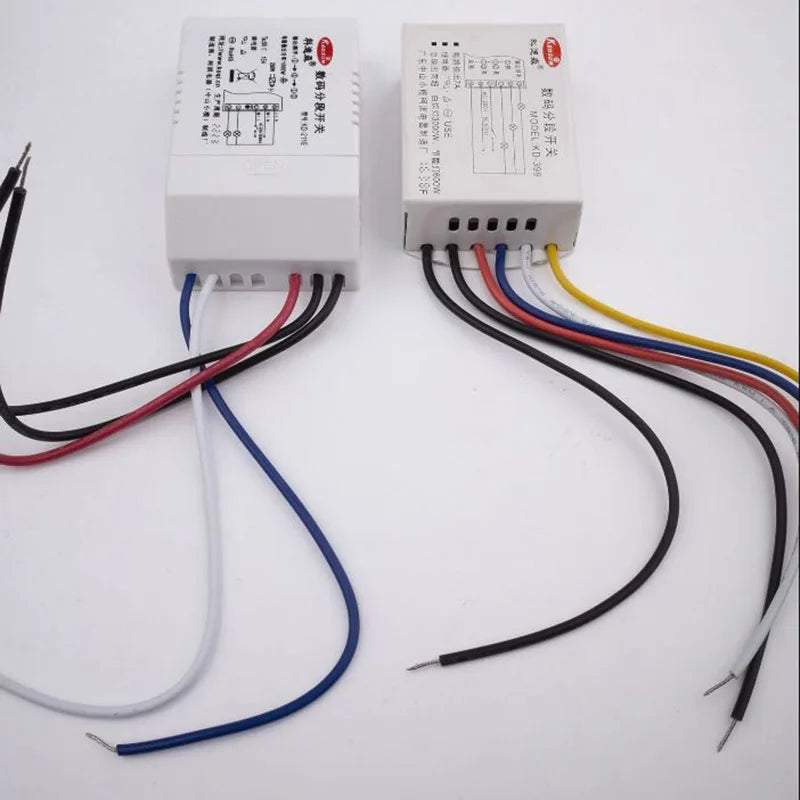

4. Wiring method: red wire connected to live wire, black wire connected to neutral wire, blue and white wire for output live wire, connected to one end of two (three) groups of lights, the other end of two (three) groups of lights connected to the other black wire.

5. Please strictly follow the circuit wiring, carefully check and then test the lamp.

6. Yuba's power is relatively large, may not be suitable for using this segment switch.

7. Each load LED lamp and energy-saving lamp are less than 250W, and each load incandescent lamp is less than 1000W.

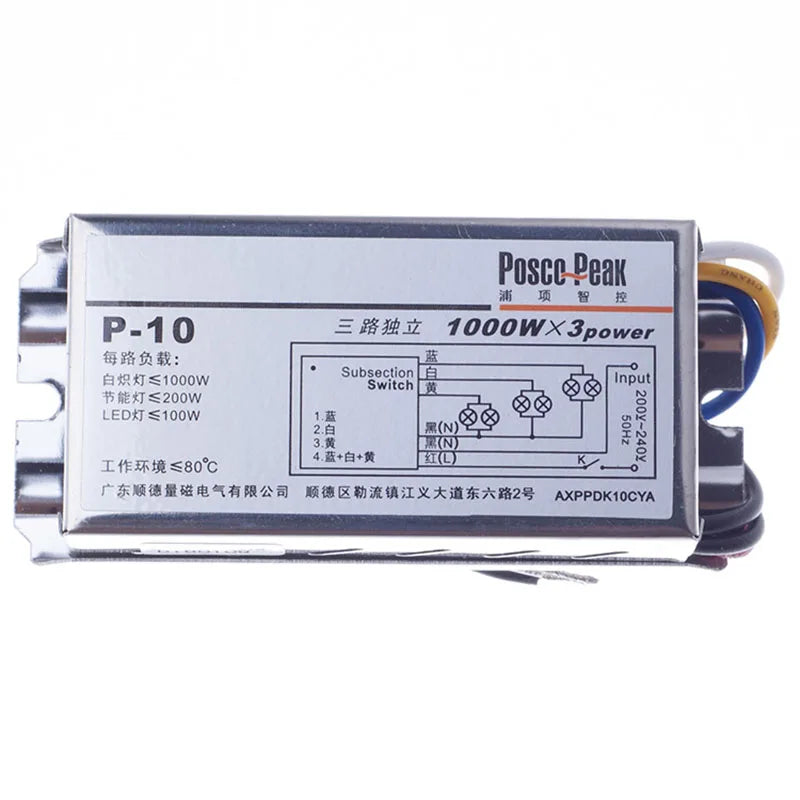

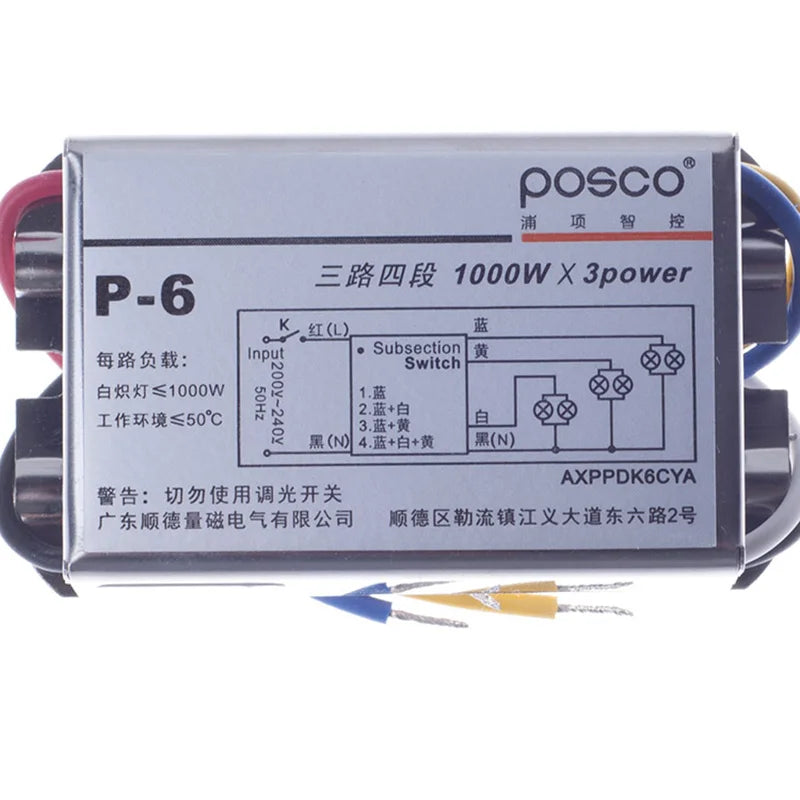

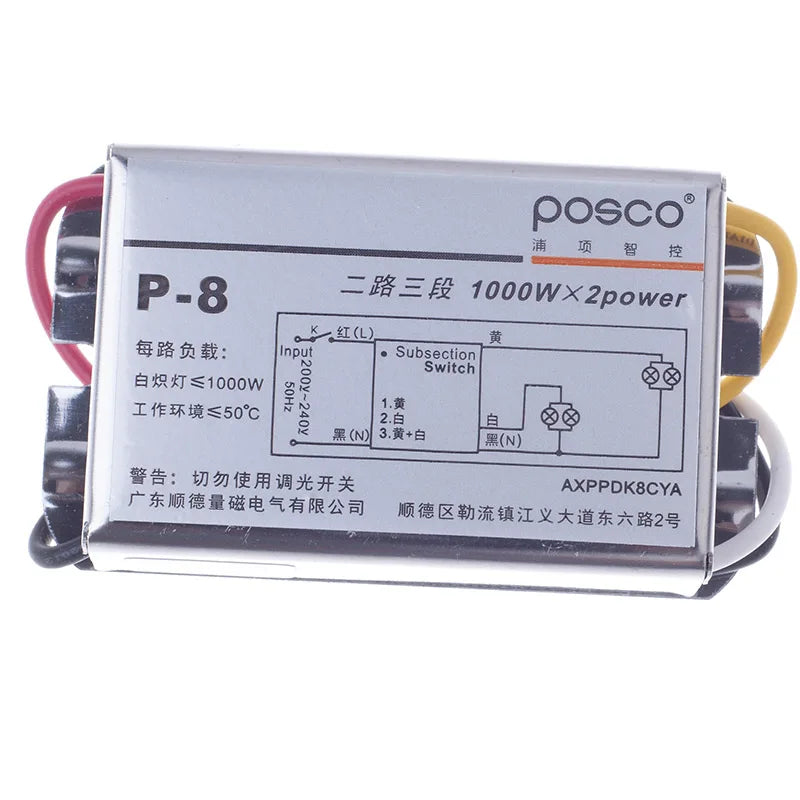

Description of POSCO subsection switch:

1. Every way loads: Incandescent lamp≤1000W.

2. Do not use dimmer switch.

3. Suitable for LED light sources.

4. Size: 67.5MM*39.5MM*4.5MM (Length*Width*Thickness)

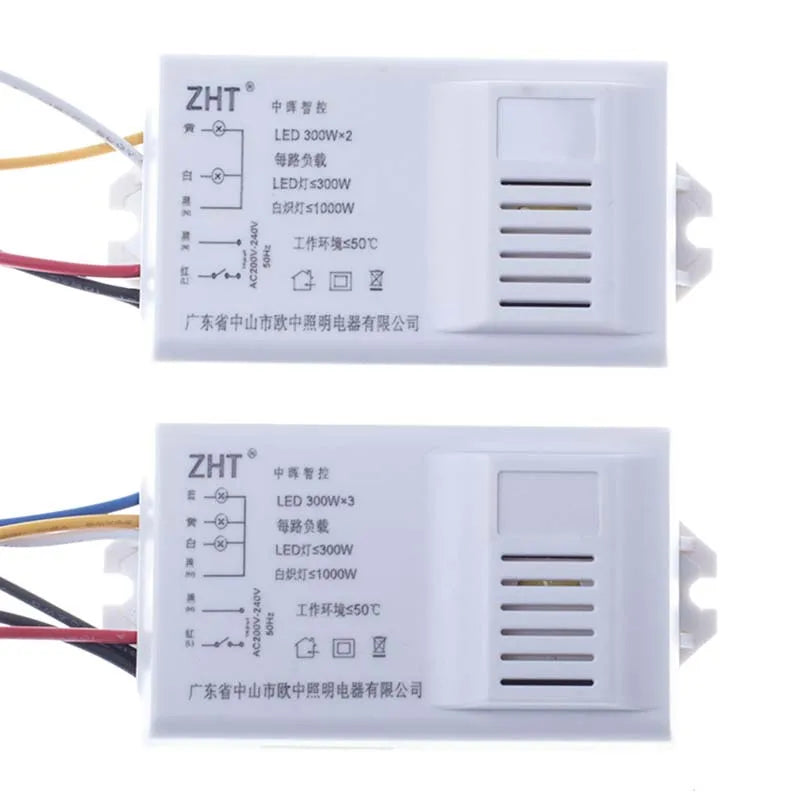

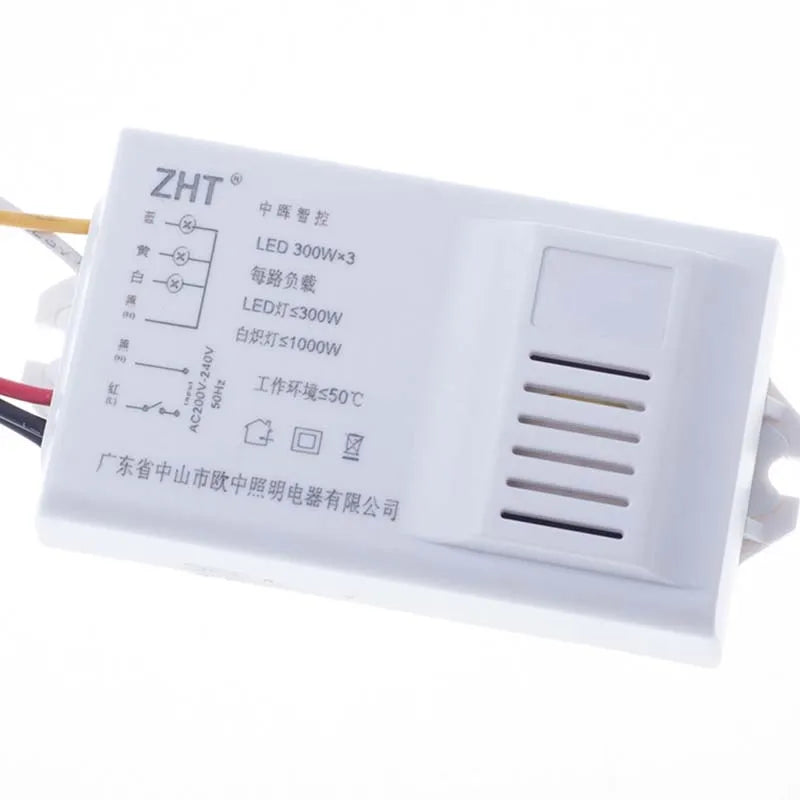

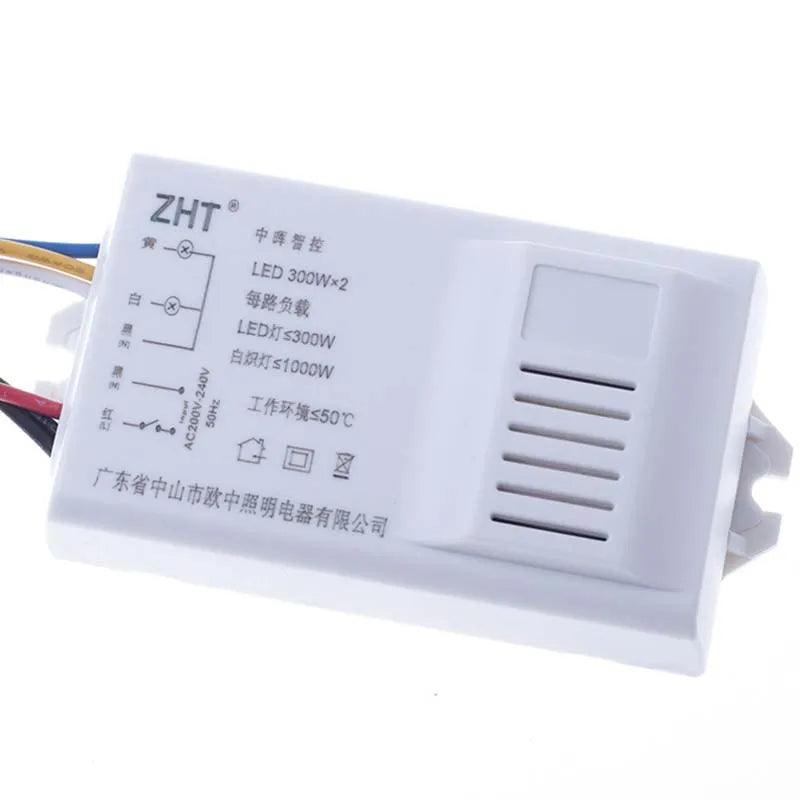

Description of ZHT subsection switch:

1. Powered by a reliable transformer to effectively increase life.

2. Can connect high power LED.

3. Size: 103.5*53.5*29mm (The size is larger than the ordinary segment switch. Please check if you can put it into the lamp before buying).

4. Every way loads: LED lamp ≤ 300W; Incandescent lamp ≤ 1000W.
