Please note:
K45 is a 40% diagonal mechanical keyboard with 45 keys: wired single mode with Type C interface, fixed aluminum base, QMK firmware +VIAL key change.
K45a is a short axis version of 40% diagonal mechanical keyboard with 45-key layout: Type C interface wired single mode, QMK firmware +VIAL key change.

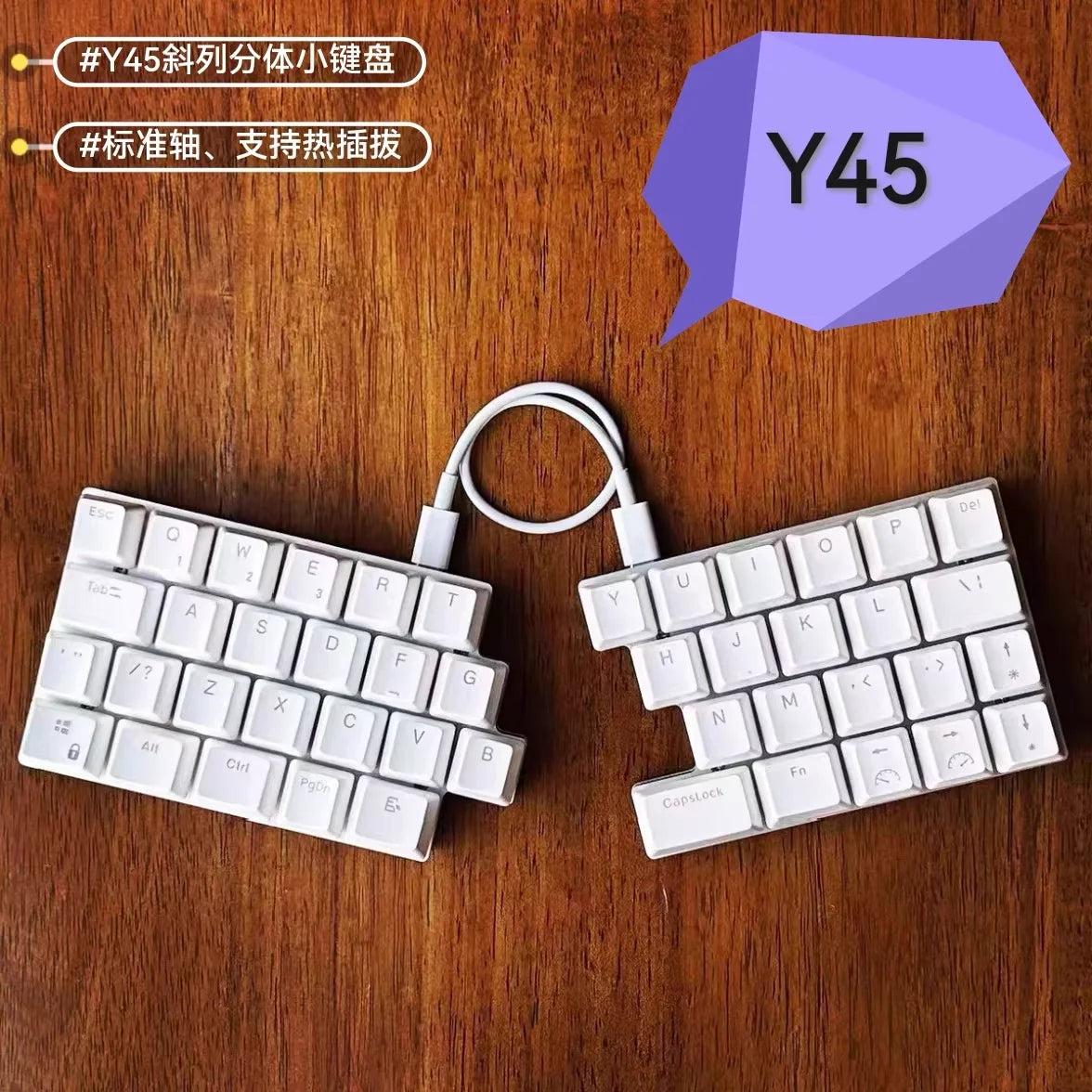

Y45 is a 45-key split mechanical keyboard with aluminum locating plate and aluminum bottom, which is specially designed for inclined keypad lovers.

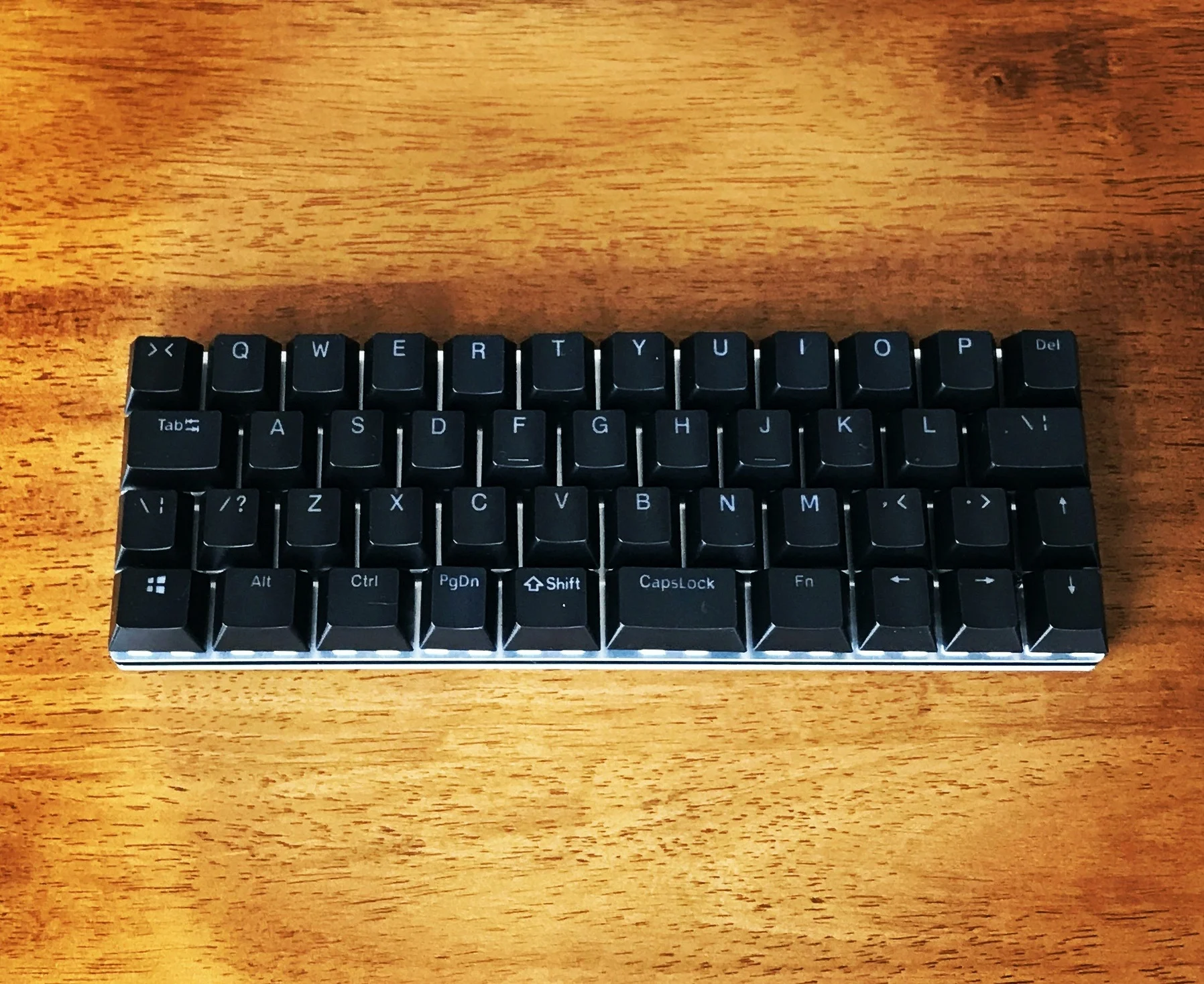

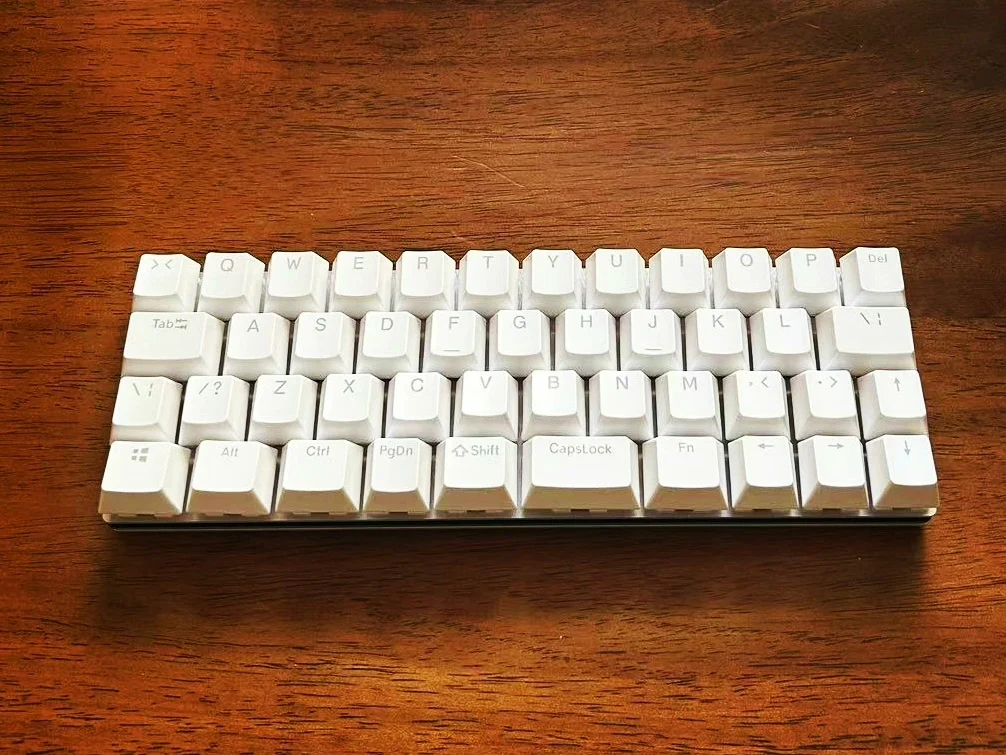

[K45] Mechanical keyboard with 40% diagonal row and 45 keys layout: wired single mode with Type C interface, fixed aluminum base, QMK firmware +VIAL key change.
☆ Extremely compact, efficient blind typing.

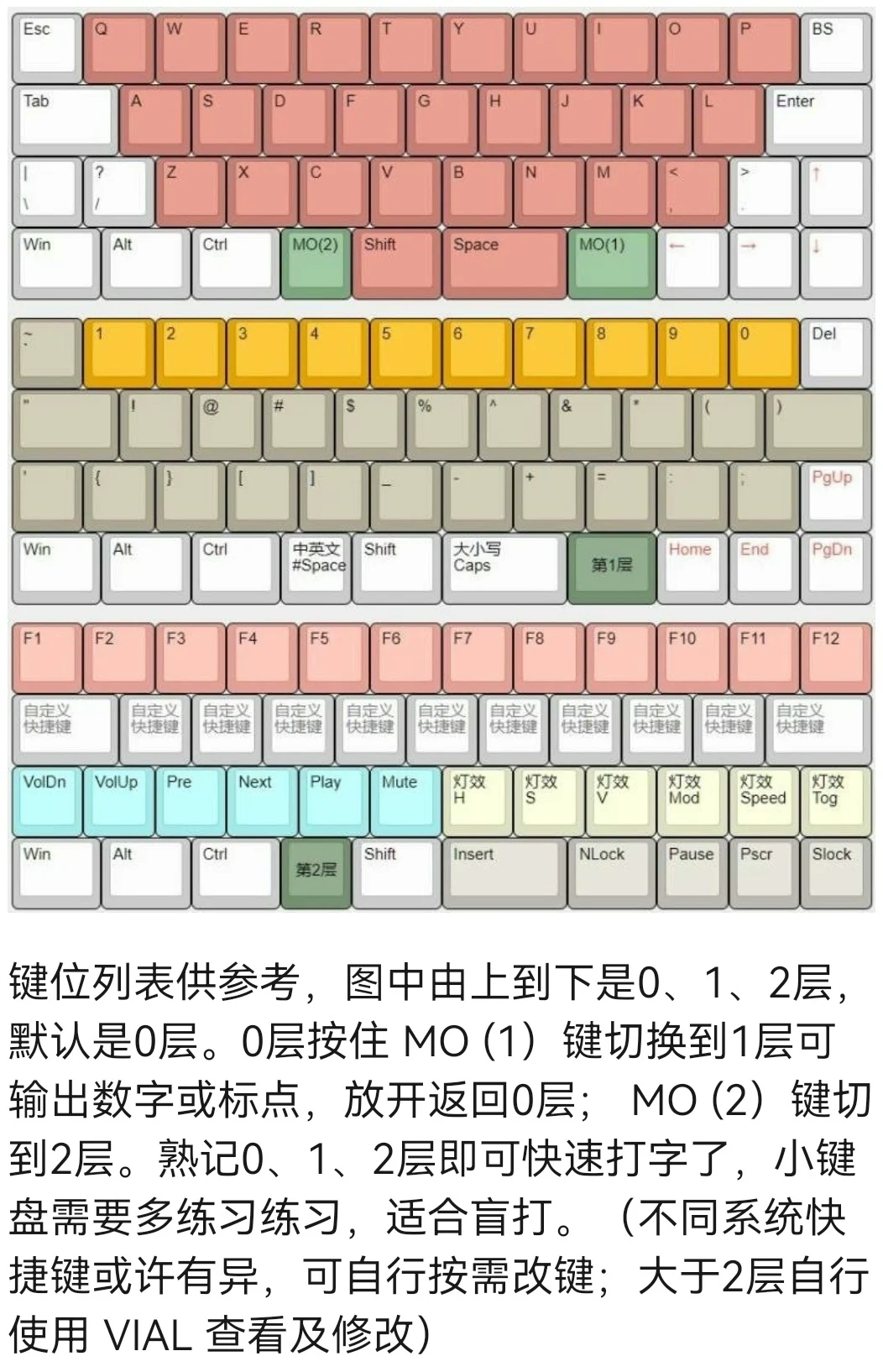

The preset keys are carefully designed as shown in Figure 7. You only need to remember 0 ~ 2 layers of keys, so you can type blindly and efficiently, and the editing work is more efficient and the entertainment and leisure are more convenient. It is also convenient to use Vial to change keys and set it as a keypad with its own special keys.
☆ RGB magic lights, the status is clear at a glance.
The F key and J key are equipped with two RGB magic color gradient lights, which are not only beautiful, but also can display the keyboard Capslock and layer status in real time, which is more concise and practical, and makes every stroke full of scientific sense.
☆ Hot-swappable red shaft, ready to use.
Standard height red shaft, with hot plug design, no need to weld, you can experience a smooth knocking feeling when you get it. At the same time, the sandwich structure of aluminum +PCB+ aluminum bottom brings extremely low height and comfortable feel, and it is not tired after long-term use.
☆ System-wide compatibility, 9-layer custom layout.
QMK firmware is adopted to support mainstream systems such as Windows, macOS, Linux, Android, etc. NKRO has no impact on all keys to ensure a smooth experience in games and work. Rich 9-layer layout, the specific key positions of each layer can be viewed and modified by Vial.
☆ Minimalist circuit design, hand-made.

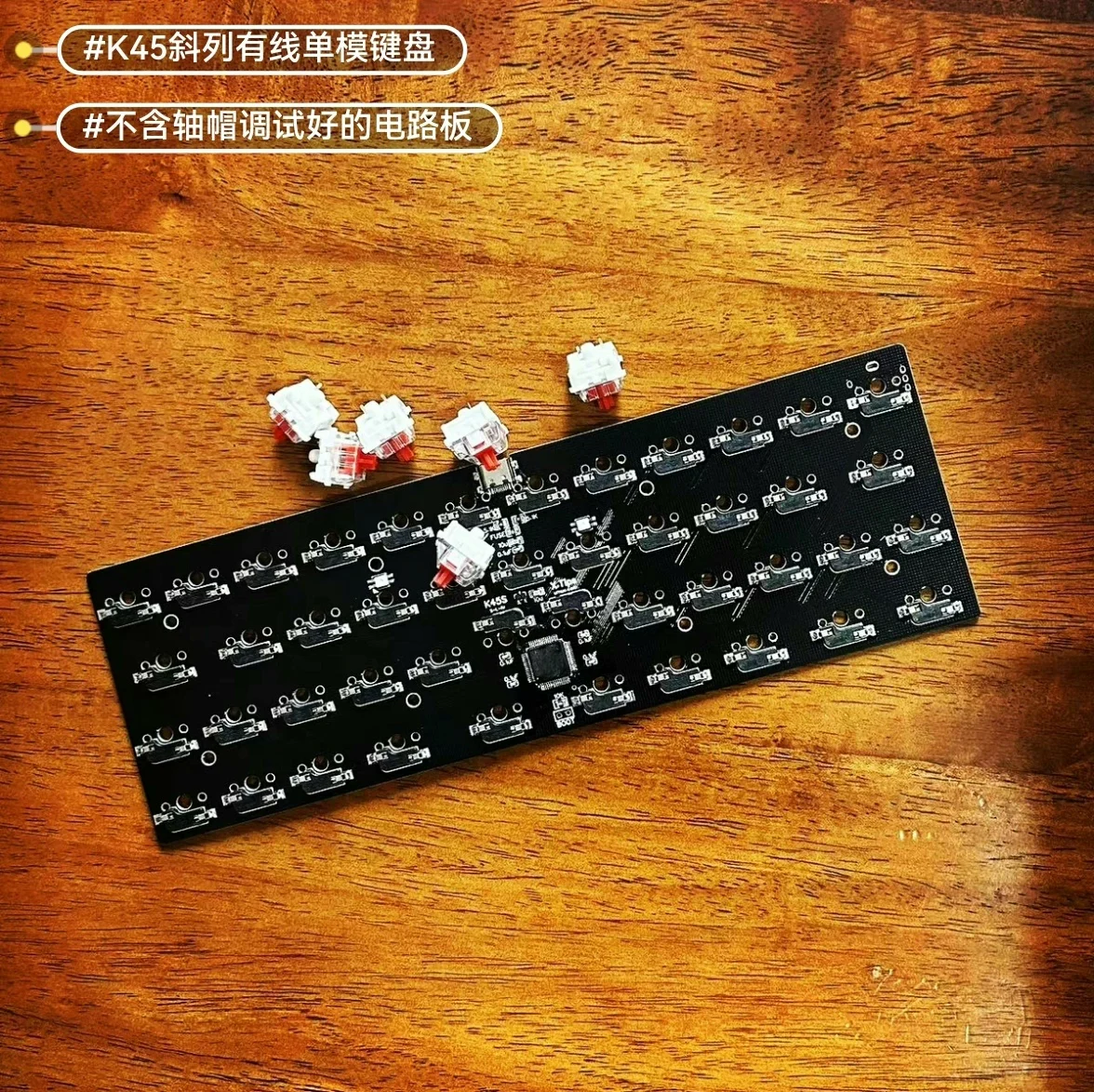

X.Tips team original, equipped with powerful STM32F103RBT6 main control chip, directly connected to the key shaft design, without matrix diode, the circuit is extremely simplified and stable.
☆ Circuit board or kit, more options
You can also provide a soldered and debugged circuit board or a kit without a shaft cap to DIY enthusiasts. The colors of different batches of circuit boards may change. In addition, hot-swappable split keyboards and short-axis welded-axis keyboards with the same arrangement are available for purchase. See products Y45 and K45a for details.

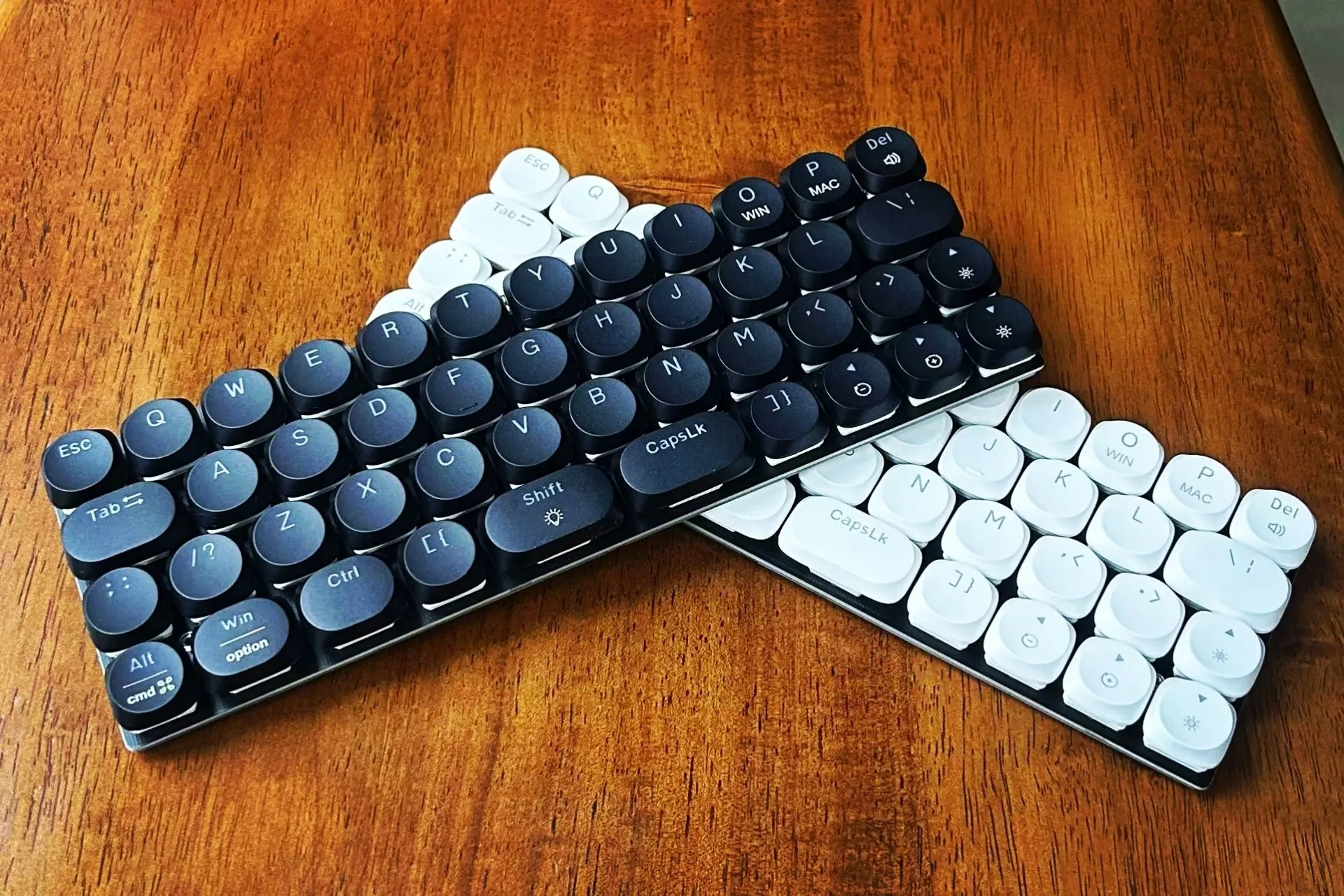

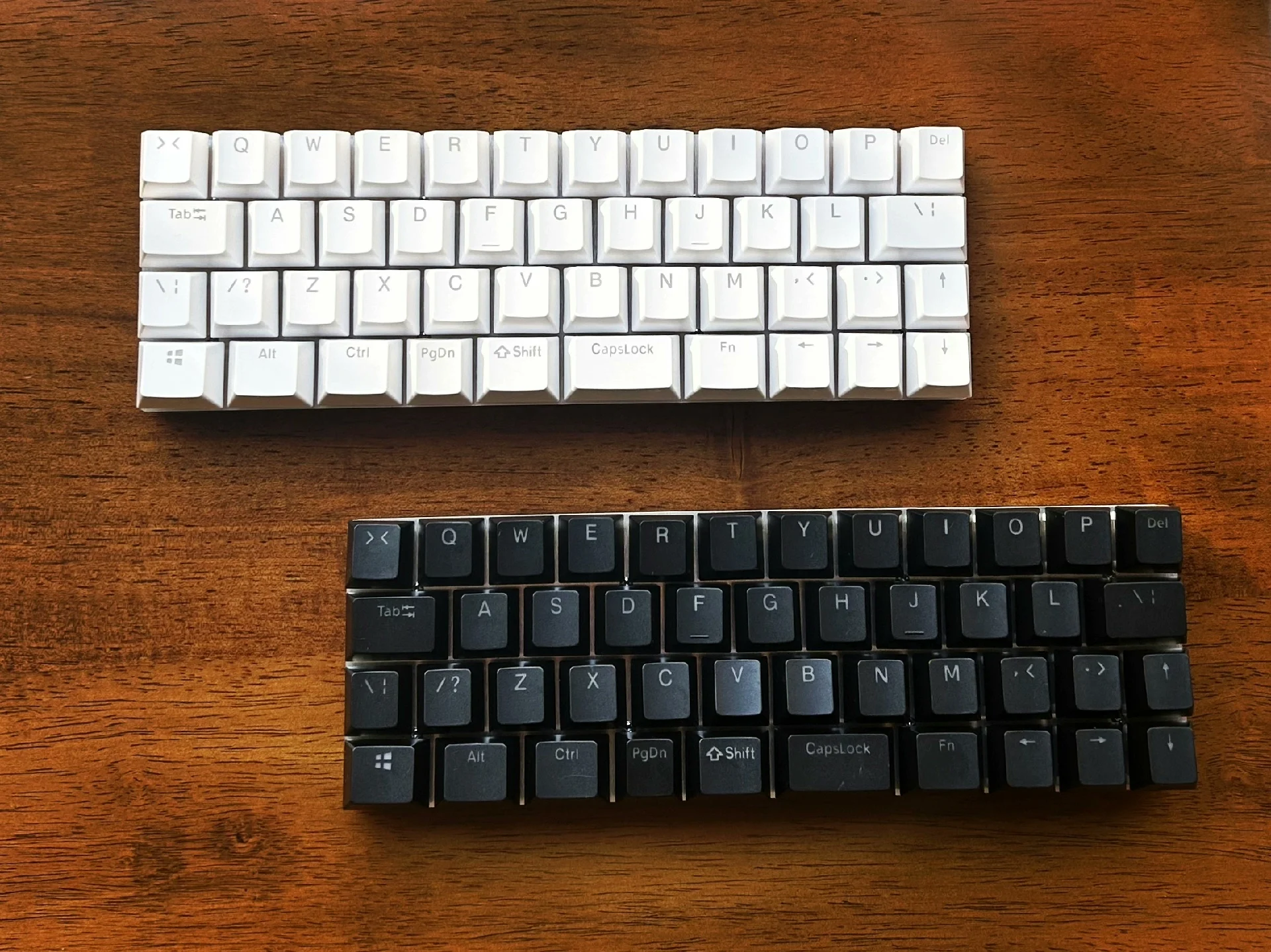

☆ Two-color keycap, free to choose.
Provide black and white keycaps to meet different needs. Different batches of keycaps may have slightly different colors and character patterns. If there are higher requirements for shaft caps, it is recommended to choose a kit to adapt itself.
★★★ Product specifications★★★
☆ Shaft body: standard height red shaft, hot plug design.
☆ Size: 229mm × 77mm

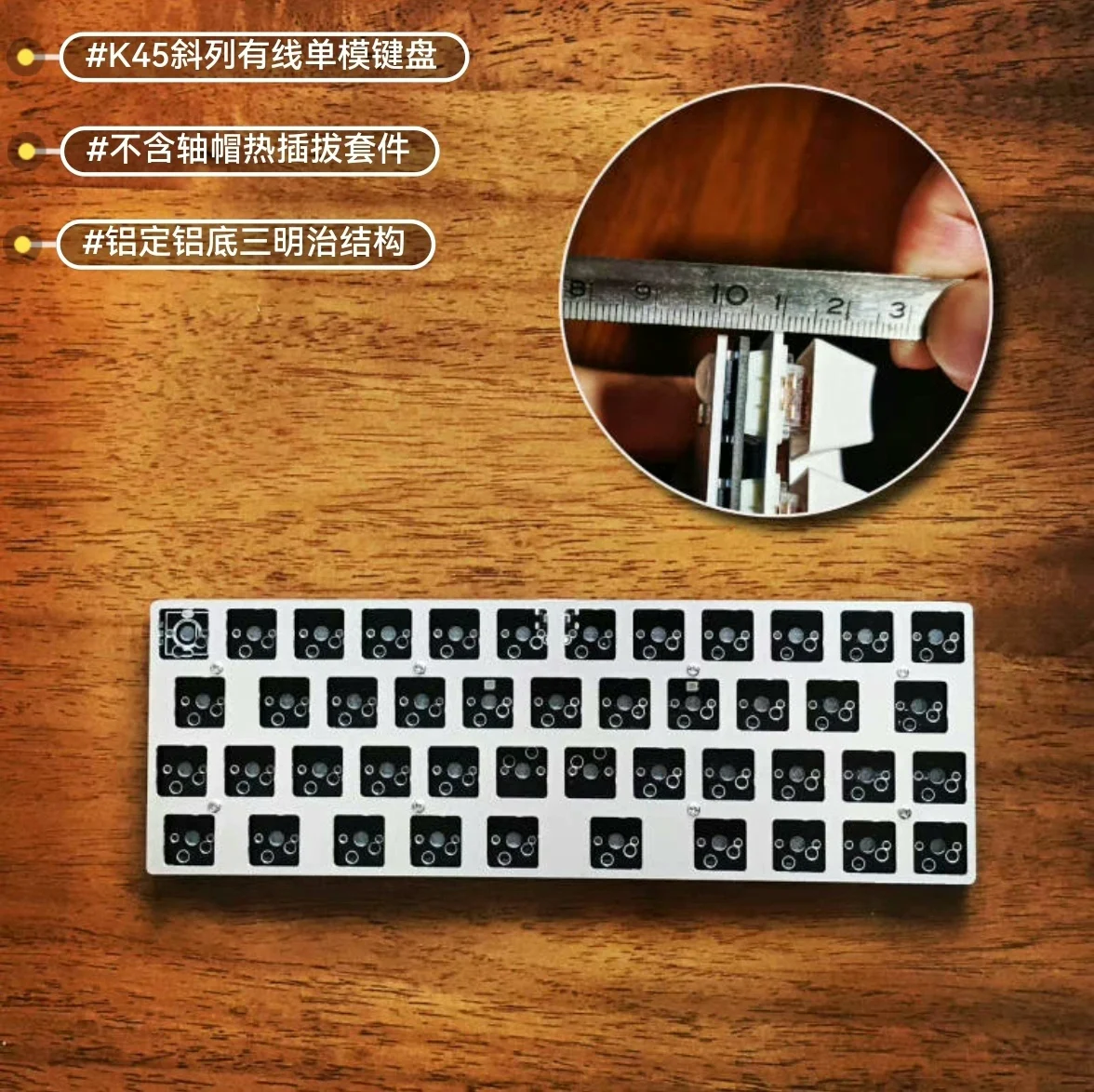

☆ Structure: aluminum +PCB+ aluminum sandwich structure.
☆ Connection: Type C interface is wired in a single mode, and the bonding wires are separated (the product does not include the connecting wire to the computer).
【 K45a 】 Mechanical keyboard with 40% diagonal and 45-key layout for short axis version: wired single mode with Type C interface, QMK firmware +VIAL key change. Extremely light and portable, effectively reducing finger fatigue, easy and comfortable to use. (This product is a wired keyboard and does not support Bluetooth and 2.4G wireless)
★★★ Product features ★★
☆ Extremely light and portable: As shown in the figure, it adopts two-layer structure of FR-4 material with short axis and red axis, and the overall height is extremely low. The height including key cap and anti-slip particles is about 17.2mm, and the net weight is about 200 grams. It feels comfortable, light and easy to carry.
☆ Extremely compact, efficient blind typing.
The preset key positions are carefully designed as shown in Figure 7. You only need to remember the 0 ~ 2 key positions, so you can type blindly and efficiently, and the editing work is more efficient and the entertainment and leisure are more convenient.
☆ RGB magic lights, the status is clear at a glance.
The F key and J key are equipped with two RGB magic color gradient lights, which are not only beautiful, but also can display the keyboard case Capslock and layer state in real time, which is more concise and practical, and makes every stroke full of scientific sense.
☆ Welded shaft short red shaft, ready to use.
Short red shaft, with welded shaft design, the finished product can experience a smooth knocking feeling when you get it.
☆ System-wide compatibility, 9-layer custom layout.
QMK firmware is adopted to support mainstream systems such as Windows, macOS, Linux, Android, etc. NKRO has no impact on all keys to ensure a smooth experience in games and work. Rich 9-layer layout, the specific key positions of each layer can be viewed and modified by Vial.
☆ Finished products or kits, more options
We can also provide soldered and debugged kits for DIY enthusiasts, and the design of different batches of circuit boards may be slightly changed. In addition, standard axis hot-swappable keyboards and split keyboards with the same arrangement are available for purchase. See products K45 and Y45 for details. "If you don't pursue extreme thinness, you can choose the standard shaft hot plug version."
★★★ Product specifications★★★
☆ Shaft body: short shaft red shaft, welded shaft plate design.
☆ Size: 229mm × 77mm
☆ Structure: FR-4 double-layer extremely light and thin structure.
☆ Connection: Type C interface is wired in a single mode, and the bonding wires are separated (the product does not include the connecting wire to the computer).
☆ Shaft body and hot plug: the current version is the finished product of Rapoo short red shaft, which is designed with non-hot plug welded shaft version, and the finished product is ready to use.
