SPECIFICATIONS

Advantage: Quick Installation

After-sale Service: Online technical support

Application: Underwater Dredging Robot

Bedroom: 1 2 3 4 rooms

Brand Name: NoEnName_Null

Color: Customized Color

Design Style: Modern

Door: Steel Security Door

Feature: Breathable, 100% Lightweight Wateproof Soundproof

High-concerned chemical: None

Material: Undercarriage Sludge Cleaning Machine

Origin: Mainland China

Product Type: Expandable Container

Product name: Expandable Container House

Shape: Gear Fish Pond Dredging Robot

Size: 10 ft 20ft 30ft 40ft

Thickness: Sludge Cleaning Robot

Type: carter, Folding Expanable

Usage: Family House

Use: House

Warranty: 1 Year

Window: Aluminium Alloy Window



PLEASE NOTE:

1.Since it is a customized product, the price needs to be calculated according to specific needs, so the link price is not the final price. Since tariffs and other fees are different in each country, it is impossible to calculate all costs in advance, so door-to-door delivery requires communication and calculation of costs later.

2. The price only for reference, the specific cost based on your requirements and the destination port, please contact us for more product details and quotations

My Whatsapp:+86 183 3717 5537

MY Email:sales18yugong@yg797.com

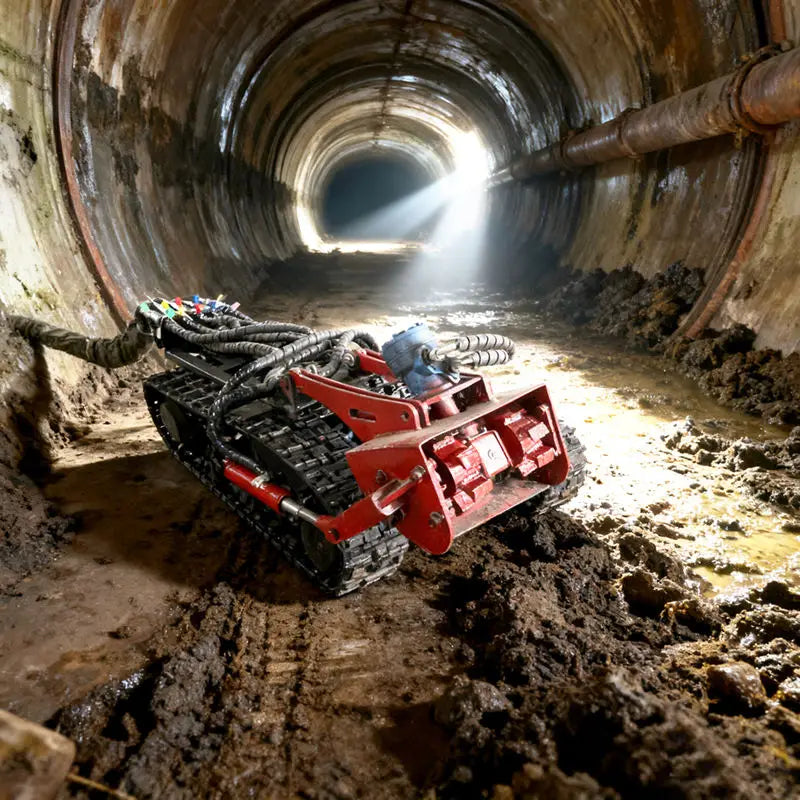

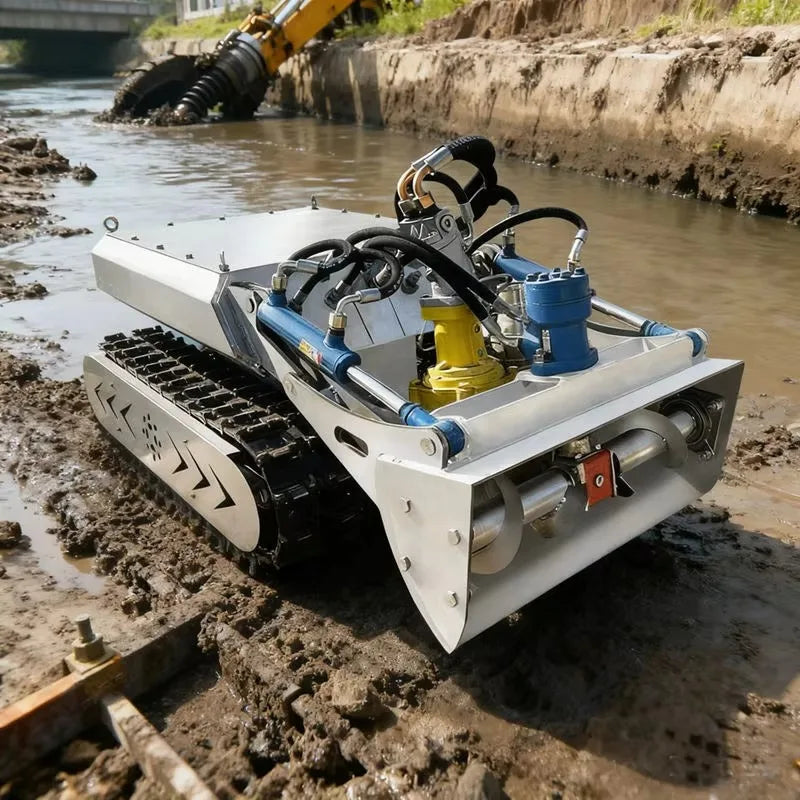

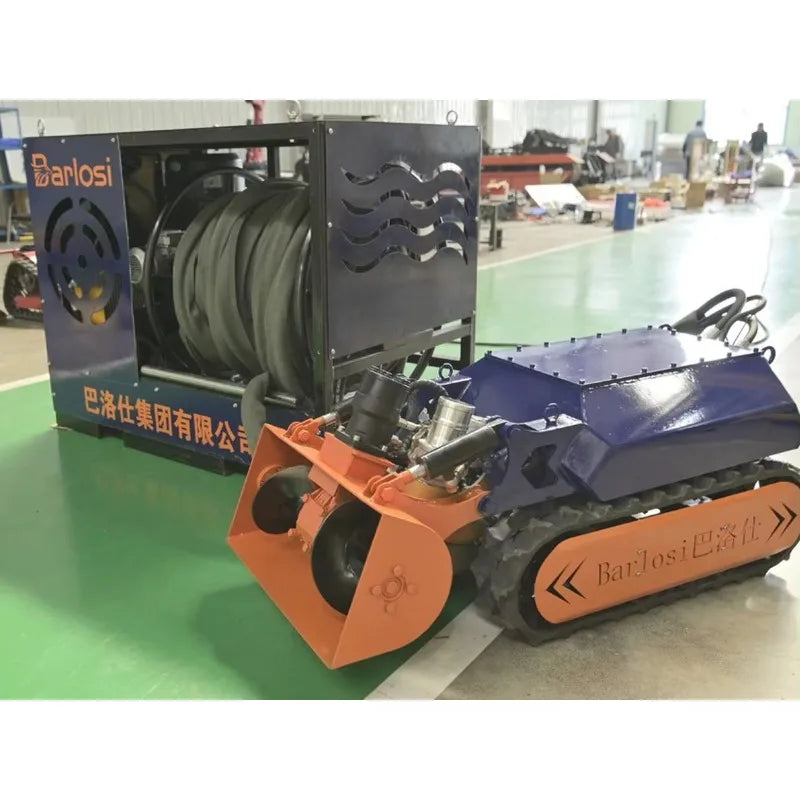

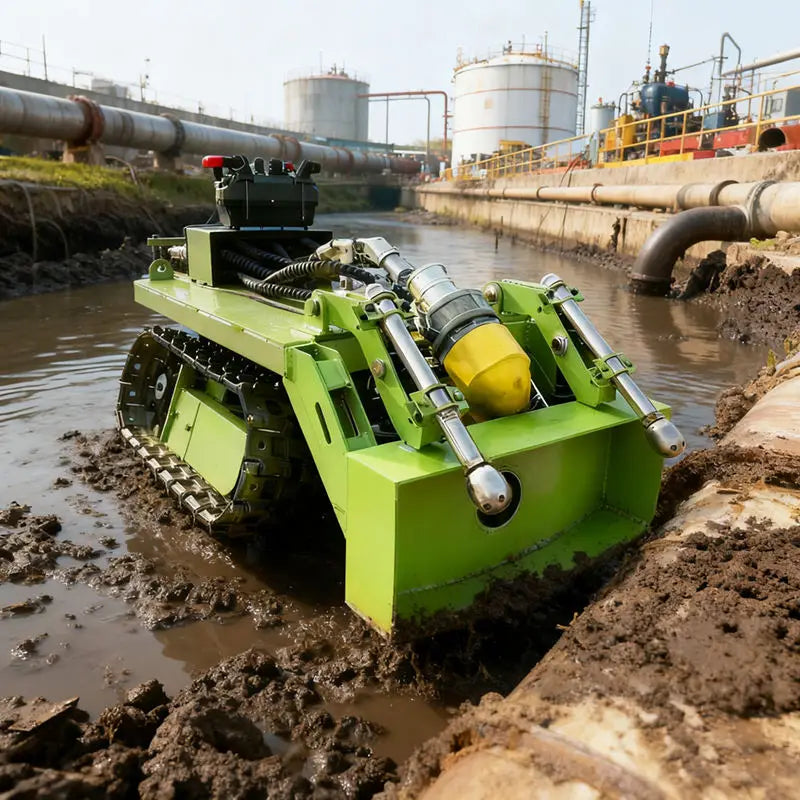

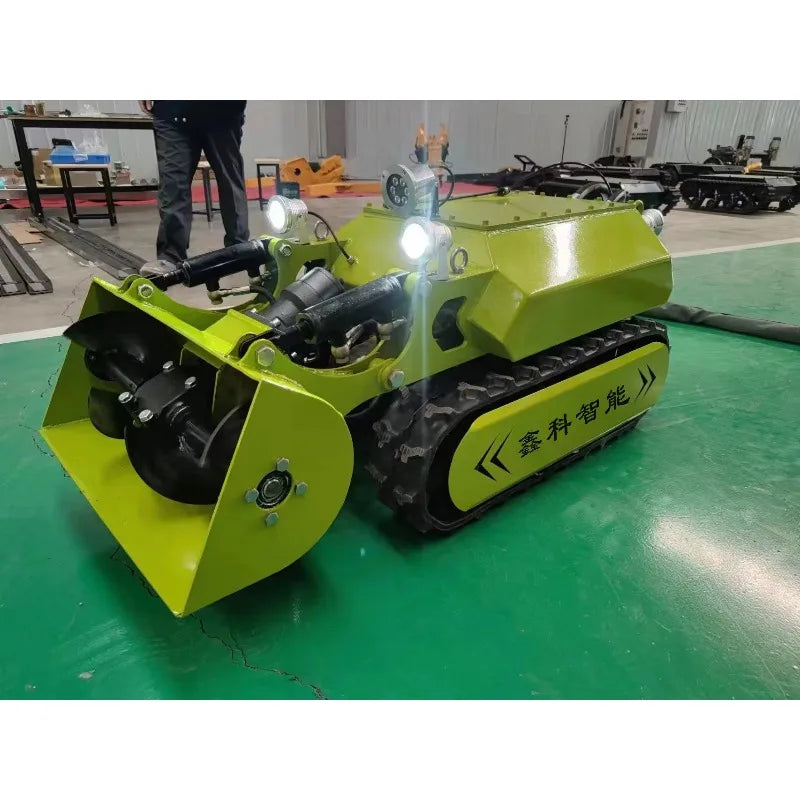

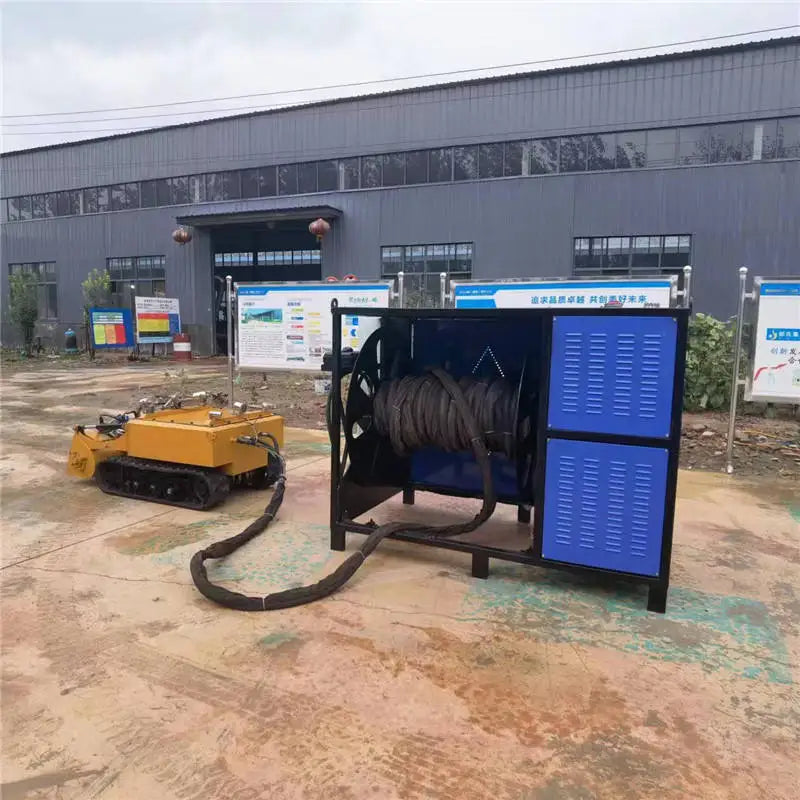

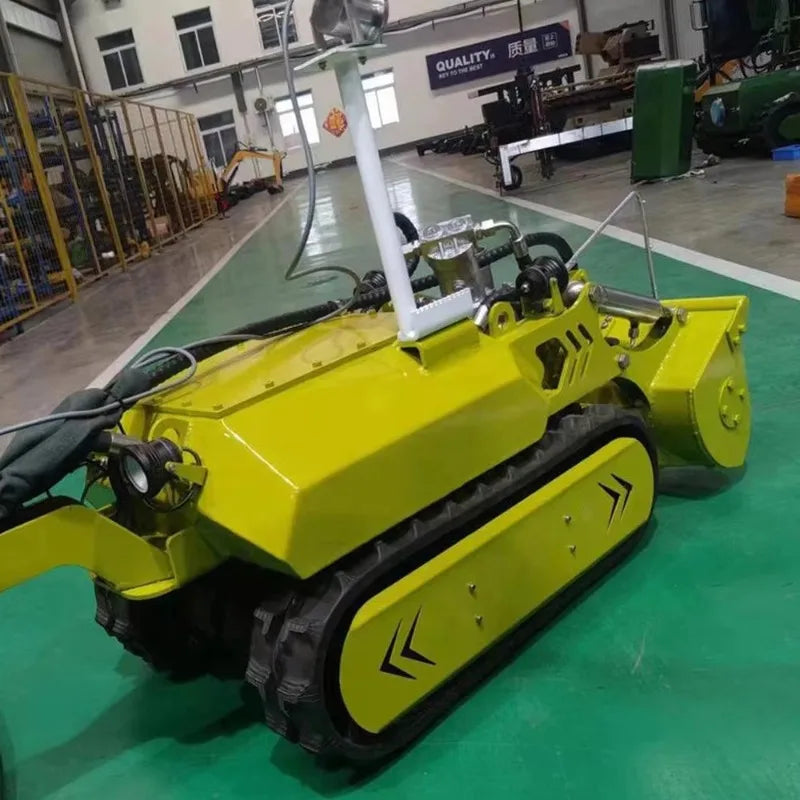

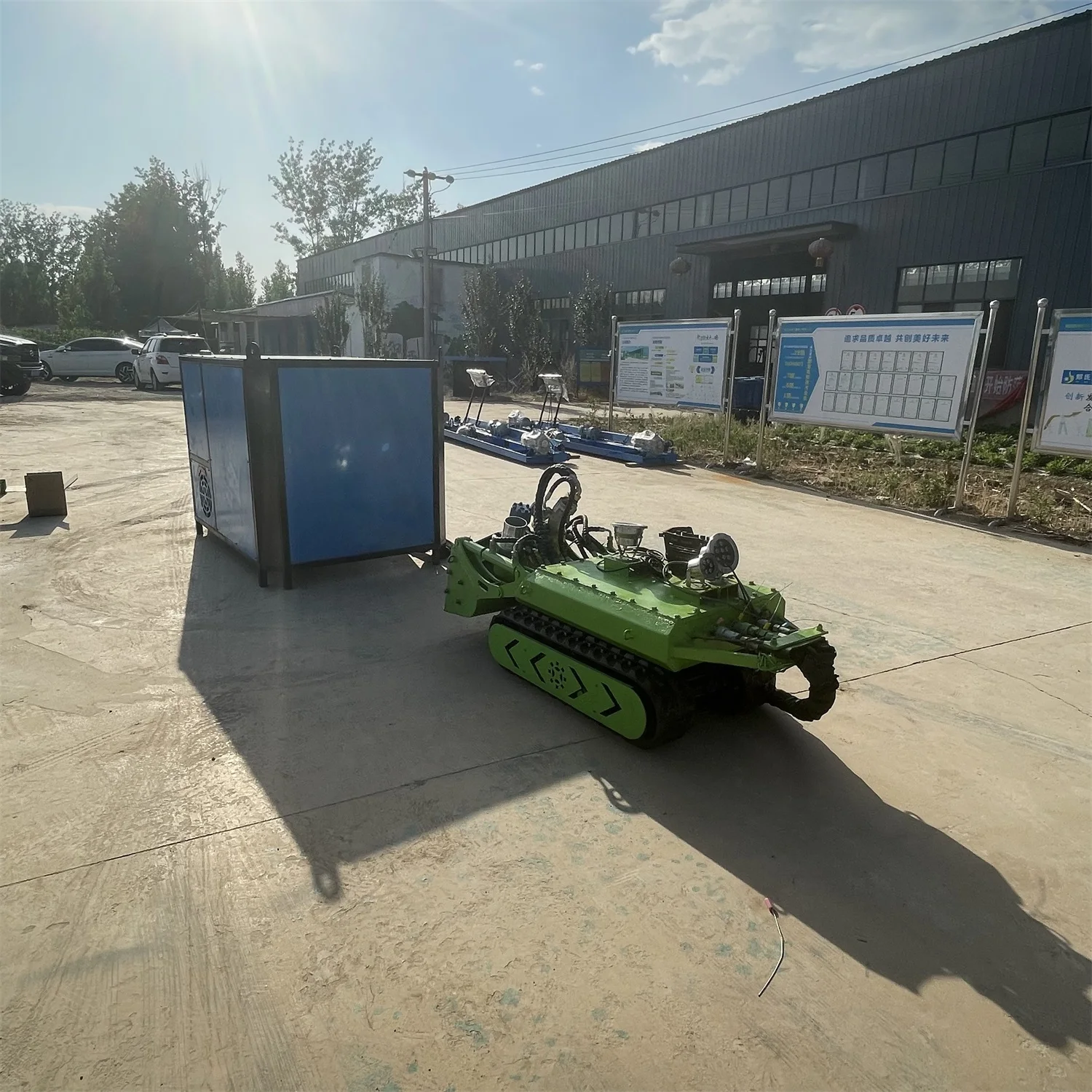

YG Underwater Dredging Robot Sludge Cleaning Robot Undercarriage Sludge Cleaning Machine Gear Fish Pond Dredging Robot



Product parameters

A dredging robot is an automated equipment specifically designed for dredging and dredging operations in water bodies. They are usually applied to rivers, lakes, ports and other water bodies to improve their navigation capacity and water quality.

Project	Equipment Parameters
Material	Q235 Mild Steel
Overall Dimensions	1500*600*600mm
Track Model	180*72*32mm
Robot Weight	About 260 kg
Walking Speed	0-2 km/h
Hydraulic Lift Auger	Central Drive
Drive Method	TM01 Planetary Gear Motor
Hydraulic Hose Length	60m Hose
Headlight	Underwater Waterproof LED Headlights *2
Waterproof Camera	5MP HD Camera *1

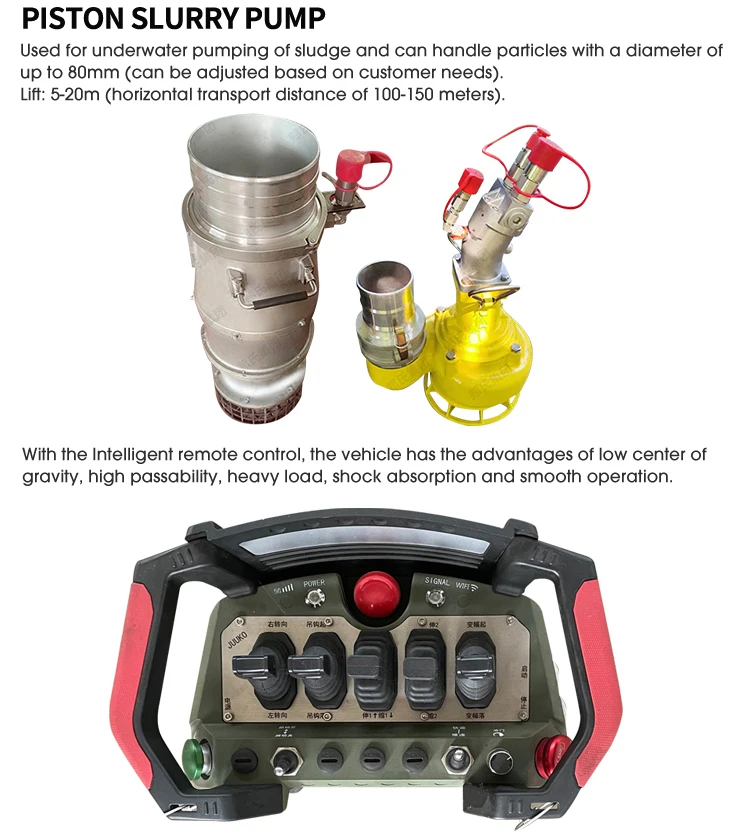

Slurry Pump	4-inch Hydraulic Slurry Pump
Maximum Suction Particle Size	20mm
Pump Flow Rate	200m³/h
Pump Head	20m
Discharge Pipe	30m Steel Wire Hose
Flushing Nozzle	Comes with 4 High-Pressure Cleaning Heads
Velcro Nylon Cover	60m
Valve Body	5-Way Electromagnetic Proportional Valve
Control Method	High-End Engineering Remote Control
Control Box	Q235 Mild Steel
Hydraulic Station Drive Motor	22kW
Hydraulic Oil Tank	150L
Hose Recovery Device	Automatic
Housing	Spray Coated

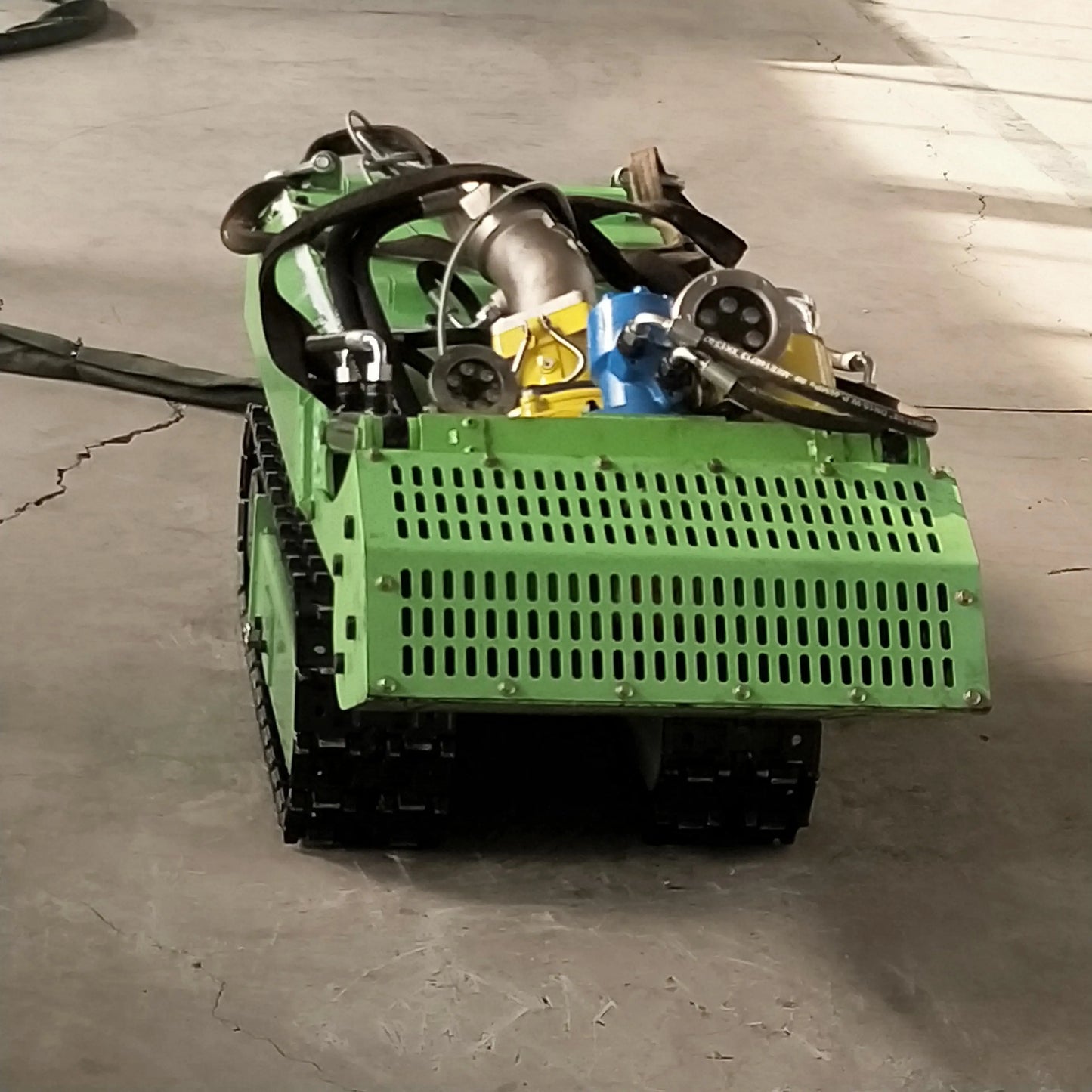

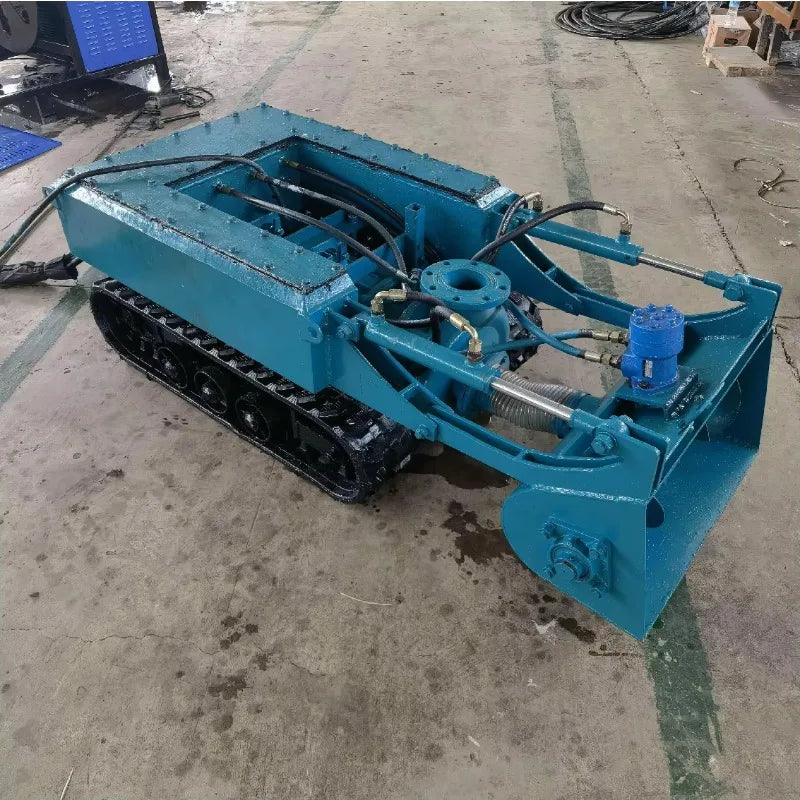

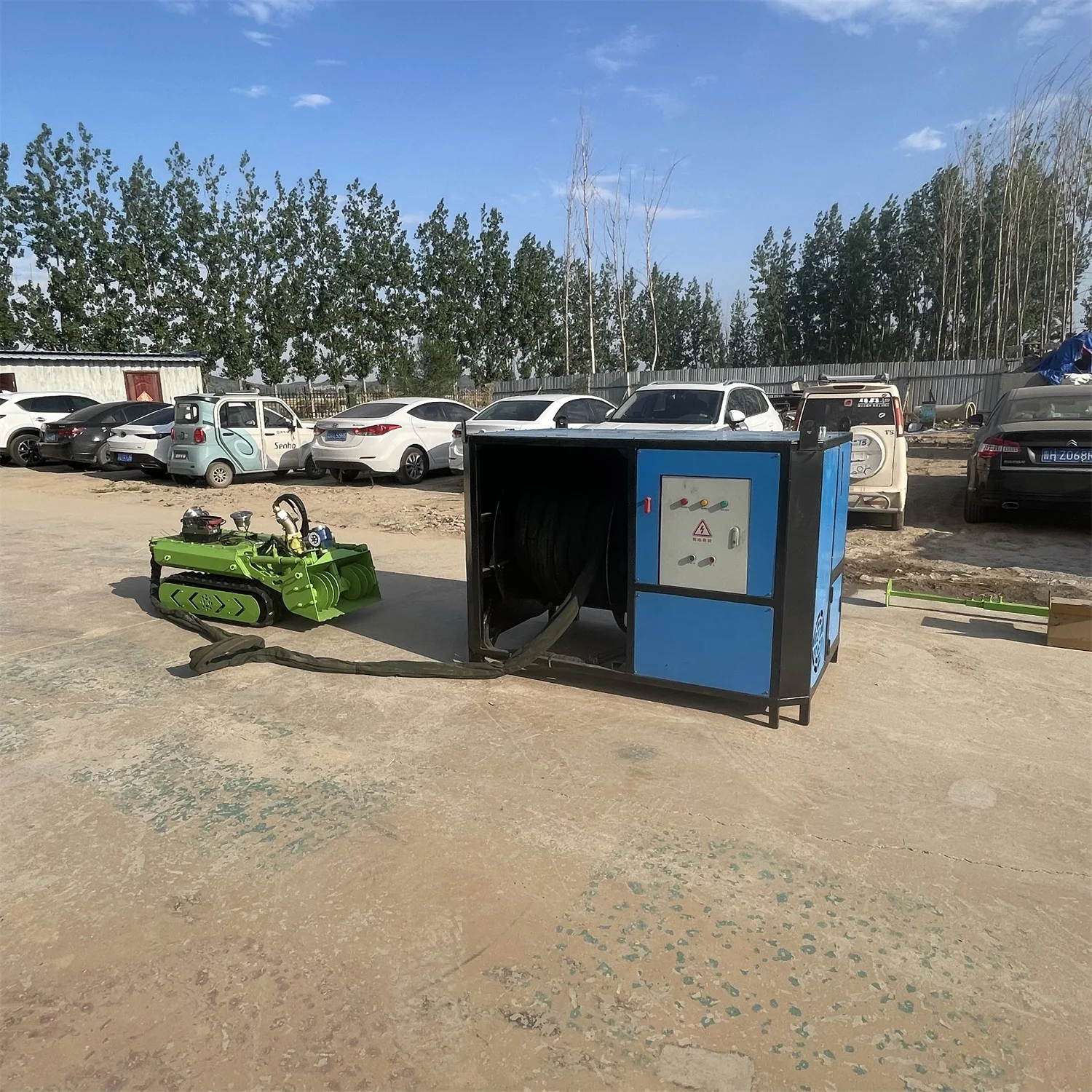

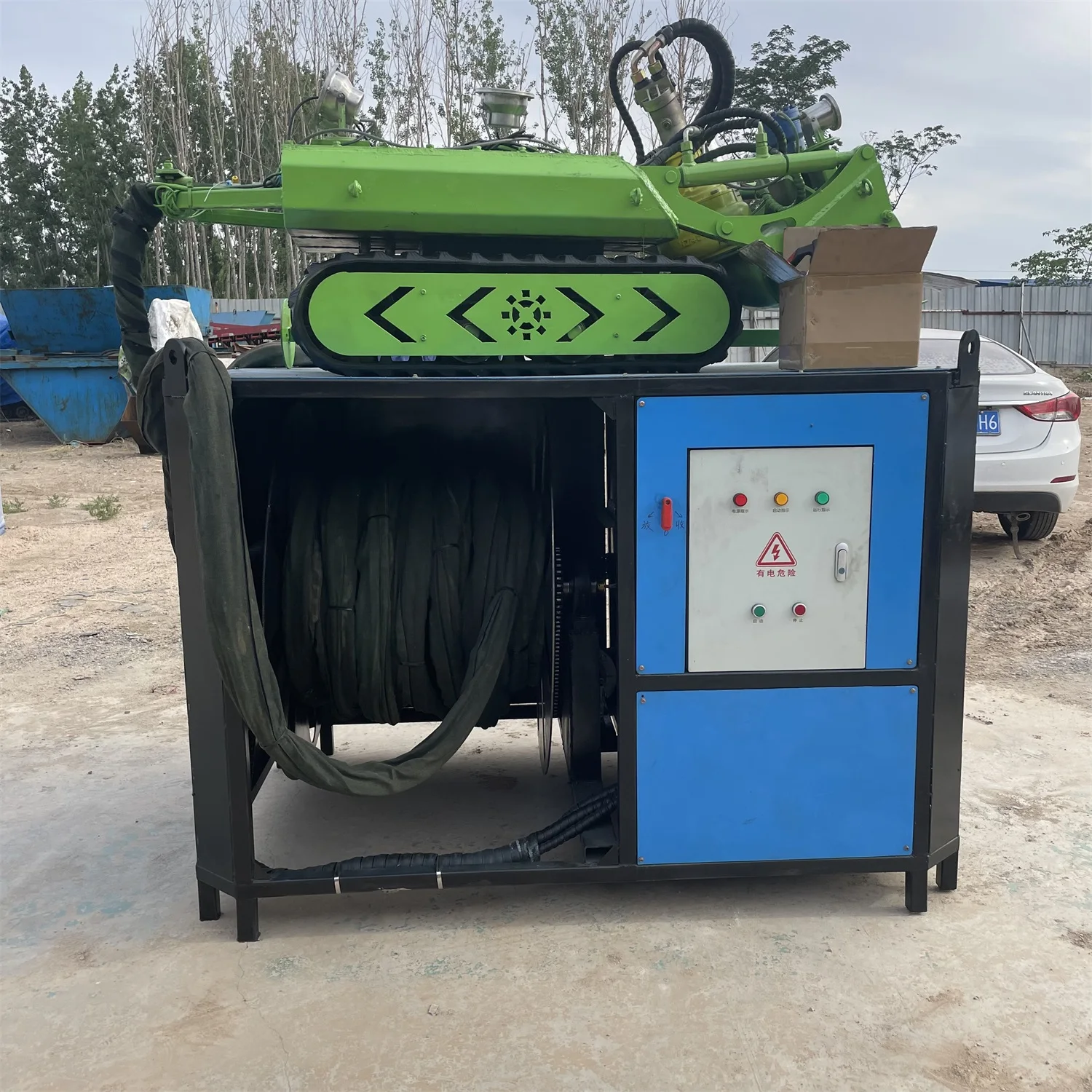

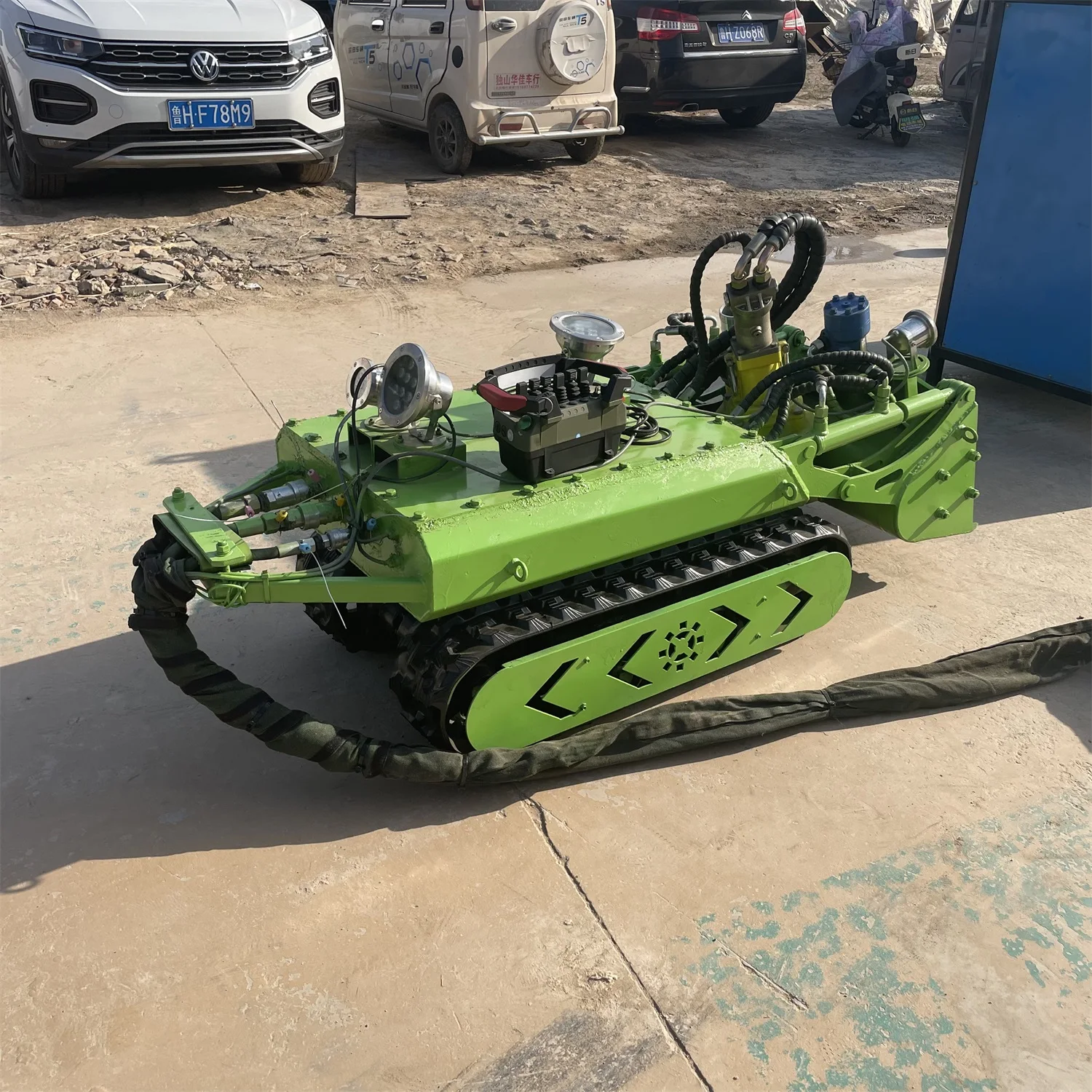

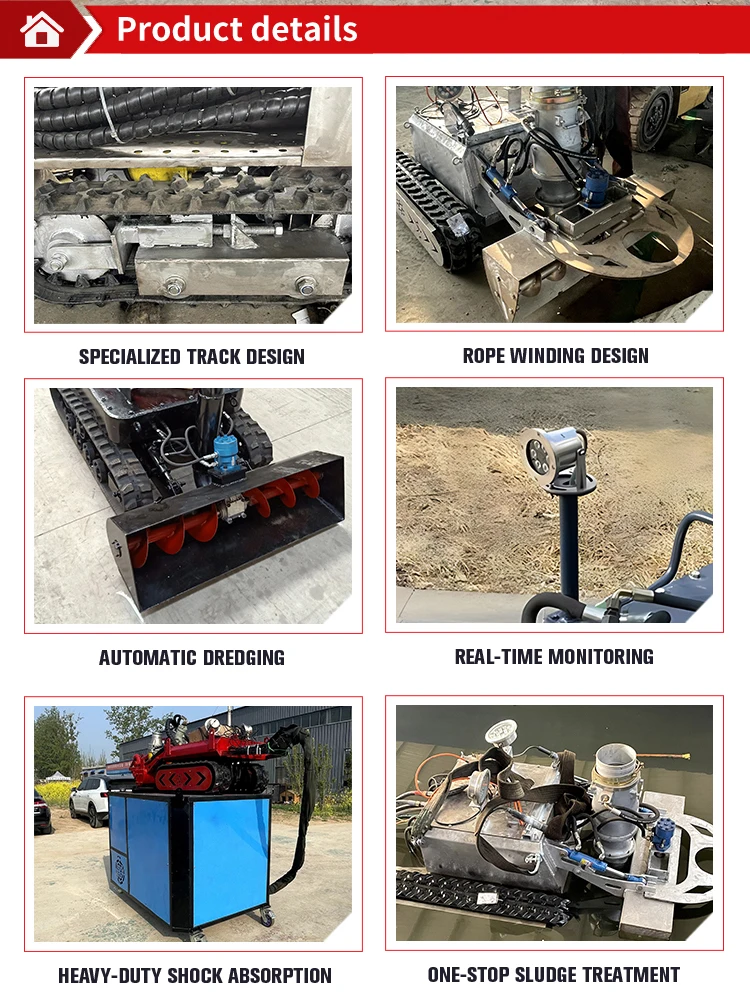

Product details

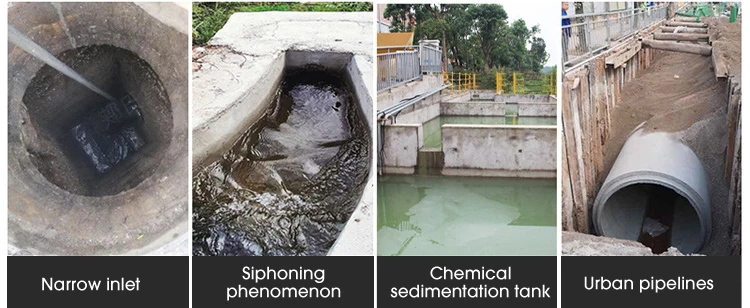

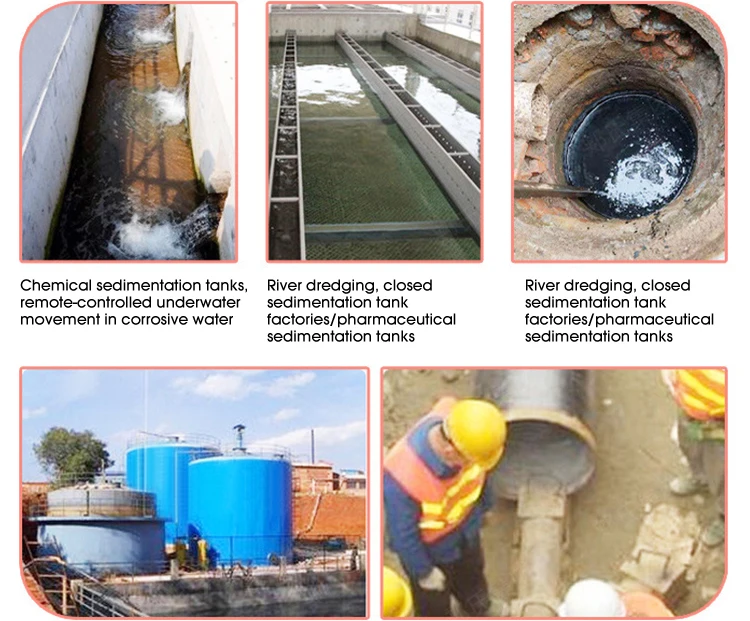

Product application

Used for dam dredging, circulating water pool cleaning, urban pipeline dredging, oil pipeline cleaning and sewage discharge, large pipeline dredging, power plant cooling tower cleaning, and various mining underground dredging.

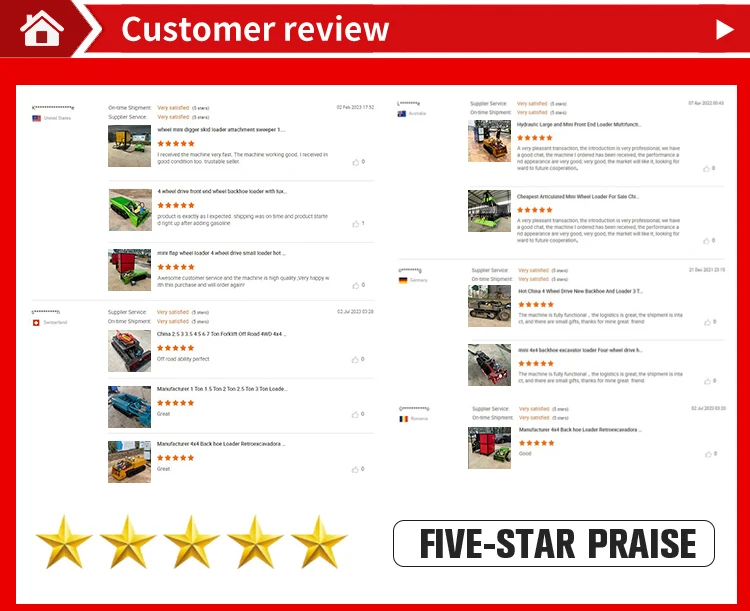

Customer review
